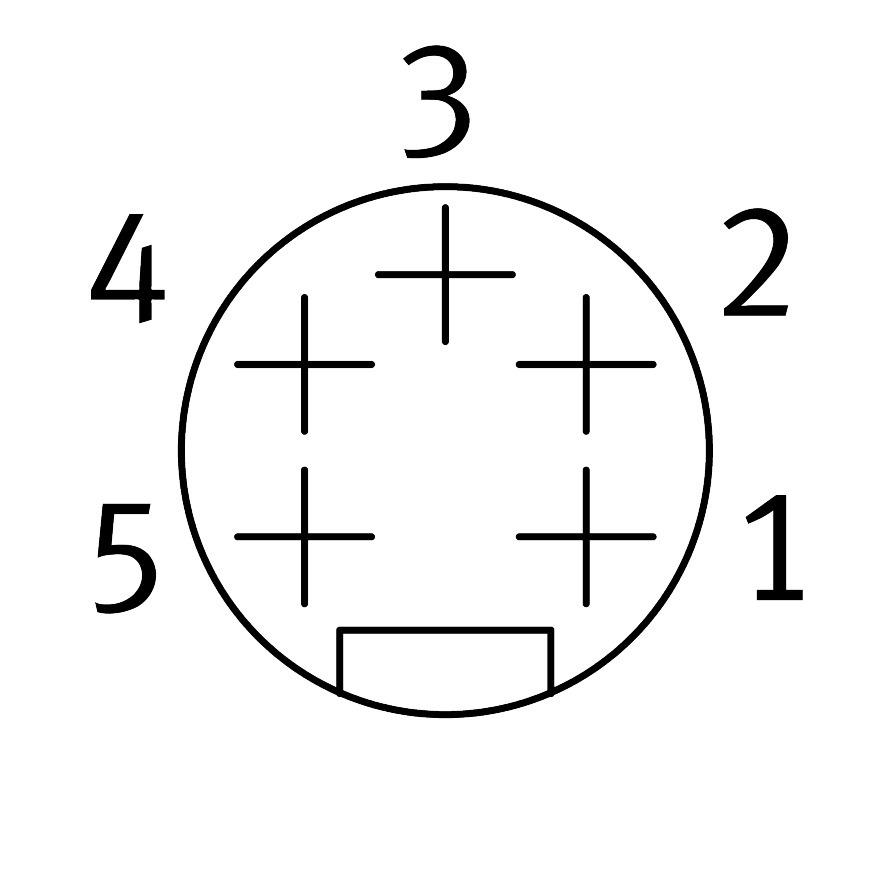

Name: Festo 8129259 Additional supply CPX-AP-A-AR-1-7/8-5P
Brand: Festo

Additional supply CPX-AP-A-AR-1-7/8-5P

The Festo industrial component, part number 8129259, features installation dimensions of 50.1 mm x 122 mm x 35 mm with a width of 50.1 mm and a product weight of 110 g. This device supports arbitrary mounting positions or horizontal placement on an H-rail, and accommodates mounting via H-rail or through-holes for M5 and M6 screws using accessories. It operates within an ambient temperature range of -20 °C to 50 °C subject to IEC 61131-2:2017 derating, a storage temperature range of -20 °C to 70 °C, and non-condensating relative air humidity from 5 to 95%. Submit the exact part number, quantity, and application requirements to request a quote for this Festo component.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8129259
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8129259.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Dimensions W x L x H: (installation dimensions) | 50.1 mm x 122 mm x 35 mm
Width dimension: 50.1 mm
Type of mounting: On H-rail with accessories | with through-hole for M5 screw with accessories | with through-hole for M6 screw with accessories
Product weight: 110 g
Mounting position: Arbitrary, on H-rail: horizontal
Ambient temperature: -20 °C...50 °C
Note on ambient temperature: Observe ambient temperature derating according to IEC 61131-2:2017
Storage temperature: -20 °C...70 °C
Relative air humidity: 5 - 95% | Non-condensating
Nominal altitude of use above sea level: <= 2000 m ASL (> 79.5 kPa)
Max. installation height: 3500 m
Information on max. installation height: > 2000 m ASL (< 79.5 kPa) | Observe ambient temperature derating according to IEC 61131-2:2017
Corrosion resistance class (CRC): 1 - Low corrosion stress
Vibration resistance: Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
Note on vibration resistance: SG1 for DIN rail | SG2 on direct mounting | Transport application test with severity level 1 as per FN 942017-4 and | EN 60068-2-6
Shock resistance: Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Note on shock resistance: 30 g/11 ms as per EN 60068-2-27 | SG1 on DIN rail | SG2 on direct mounting | Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27
Protection class: III
Overvoltage category: II
LABS (PWIS) conformity: VDMA24364-B2-L
Material re test: UL94 V-0 (housing)
