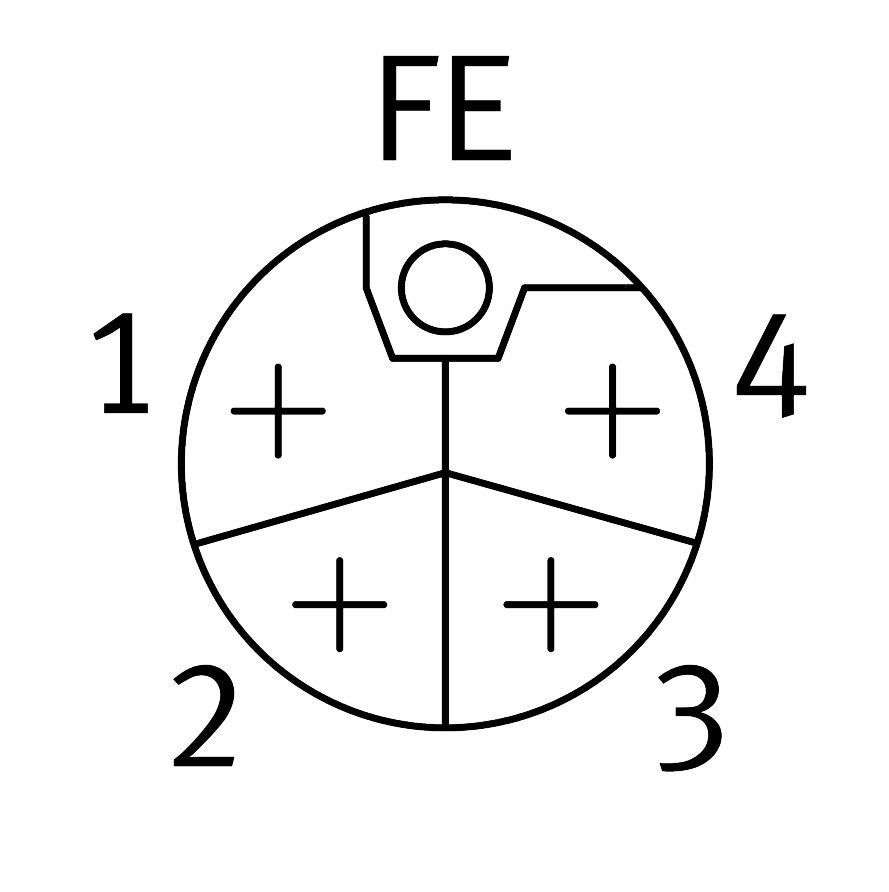

Name: Festo 8129261 System supply CPX-AP-A-S-2-M12-5P
Brand: Festo

System supply CPX-AP-A-S-2-M12-5P

The Festo industrial component, part number 8129261, features dimensions of 50.1 mm x 150 mm x 45.6 mm and a product weight of 183 g. Designed for arbitrary mounting positions or horizontal placement on an H-rail, it operates within an ambient temperature range of -20 °C to 50 °C and withstands relative air humidity from 5 to 95% non-condensating. This Class III protection device exhibits a corrosion resistance class of 1 with low corrosion stress and complies with specified vibration and shock resistance standards. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8129261
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8129261.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Dimensions W x L x H: (installation dimensions) | 50.1 mm x 150 mm x 45.6 mm
Width dimension: 50.1 mm
Type of mounting: On H-rail with accessories | with through-hole for M5 screw with accessories | with through-hole for M6 screw with accessories
Product weight: 183 g
Mounting position: Arbitrary, on H-rail: horizontal
Ambient temperature: -20 °C...50 °C
Note on ambient temperature: Observe ambient temperature derating according to IEC 61131-2:2017
Storage temperature: -20 °C...70 °C
Relative air humidity: 5 - 95% | Non-condensating
Nominal altitude of use above sea level: <= 2000 m ASL (> 79.5 kPa)
Max. installation height: 3500 m
Information on max. installation height: > 2000 m ASL (< 79.5 kPa) | Observe ambient temperature derating according to IEC 61131-2:2017
Corrosion resistance class (CRC): 1 - Low corrosion stress
Vibration resistance: Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
Note on vibration resistance: SG1 for DIN rail | SG2 on direct mounting | Transport application test with severity level 1 as per FN 942017-4 and | EN 60068-2-6
Shock resistance: Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Note on shock resistance: 30 g/11 ms as per EN 60068-2-27 | SG1 on DIN rail | SG2 on direct mounting | Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27
Protection class: III
Overvoltage category: II
LABS (PWIS) conformity: VDMA24364-B2-L
Material re test: UL94 V-0 (housing)
