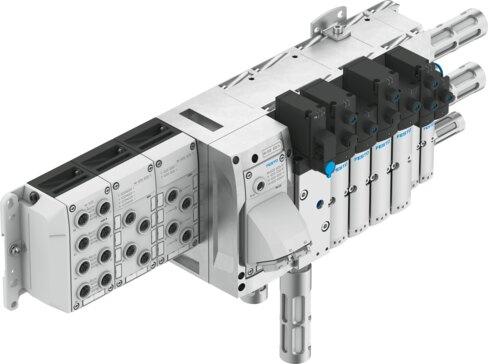

Name: Festo 8130716 Valve manifold VTSA-FB-AP
Brand: Festo

Valve manifold VTSA-FB-AP

The Festo industrial component, part number 8130716, is a modular pneumatic valve manifold featuring a valve manifold design that allows mixed pneumatic valve sizes for up to 32 valve positions with electrical actuation via AP interface or fieldbus. It operates within a pressure range of -0.9 bar to 10 bar, a pilot pressure of 3 bar to 10 bar, and utilizes compressed air as per ISO 8573-1:2010 [7:4:4] across an ambient temperature of -5 °C to 50 °C with IP65 degree of protection. This RoHS-compliant and halogen-free unit supports multiple mounting methods including direct mounting via through-hole and H-rail installation, features an arbitrary mounting position (horizontal on H-rail), and carries CE marking as per EU EMC and RoHS directives alongside c UL us and RCM certifications. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8130716
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8130716.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Electrical actuation: AP interface | Fieldbus
Type of mounting: Direct mounting via through-hole | On H-rail with accessories | On mounting frame | Screwed on | with through-hole for M5 screw with accessories | with through-hole for M6 screw with accessories | with through-hole for M5 screw | with through-hole for M6 screw
Mounting position: Arbitrary, on H-rail: horizontal
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Ambient temperature: -5 °C...50 °C
Note on ambient temperature: Observe derating according to user documentation | Observe ambient temperature derating according to IEC 61131-2:2017
Storage temperature: -20 °C...60 °C
Relative air humidity: 5 - 90% | Non-condensating
Max. installation height: 3500 m
Information on max. installation height: > 2000 m ASL (< 79.5 kPa) | Observe derating according to user documentation | Observe ambient temperature derating according to IEC 61131-2:2017
Degree of protection: IP65
Corrosion resistance class (CRC): 0 - No corrosion stress
Operating pressure: -0.9 bar...10 bar
Pilot pressure: 3 bar...10 bar
LABS (PWIS) conformity: VDMA24364-B1/B2-L
CE marking (see declaration of conformity): As per EU EMC directive | As per EU RoHS directive
Certication: RCM compliance mark | c UL us - recognized (OL)
Note on materials: RoHS compliant | Halogen-free | Contains no phosphoric acid esters
Valve manifold design: Modular, pneumatic valve sizes can be mixed
Max. no. of valve positions: 32

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8130716. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
