Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

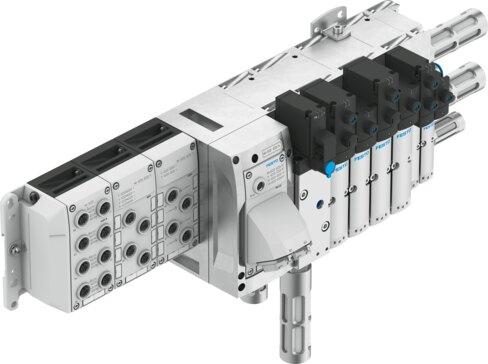

Reference imageConfirm configuration by manufacturer part number.
Festo
8130722
Valve manifold VTSA-F-CB-AP
The Festo part number 8130722 is an industrial component featuring electrical actuation via AP interface or fieldbus and a modular, pneumatic valve manifold design with mixed valve sizes. It operates with compressed air meeting ISO 8573-1:2010 [7:4:4] standards at operating pressures from -0.9 bar to 10 bar and pilot pressures from 3 bar to 10 bar, achieving an IP65 degree of protection. This unit supports arbitrary mounting positions or horizontal placement on an H-rail, functioning within an ambient temperature range of -5 °C to 50 °C and up to an installation height of 3500 m. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8130722
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8130722.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Electrical actuation
- AP interface | Fieldbus
- Type of mounting
- Direct mounting via through-hole | On H-rail with accessories | On mounting frame | Screwed on | with through-hole for M5 screw with accessories | with through-hole for M6 screw with accessories | with through-hole for M5 screw | with through-hole for M6 screw
- Mounting position
- Arbitrary, on H-rail: horizontal
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Pilot medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -5 °C...50 °C
- Note on ambient temperature
- Observe derating according to user documentation | Observe ambient temperature derating according to IEC 61131-2:2017
- Storage temperature
- -20 °C...60 °C
- Relative air humidity
- 5 - 90% | Non-condensating
- Max. installation height
- 3500 m
- Information on max. installation height
- > 2000 m ASL (< 79.5 kPa) | Observe derating according to user documentation | Observe ambient temperature derating according to IEC 61131-2:2017
- Degree of protection
- IP65
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- Operating pressure
- -0.9 bar...10 bar
- Pilot pressure
- 3 bar...10 bar
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- Certication
- RCM compliance mark | c UL us - recognized (OL)
- Note on materials
- RoHS compliant | Halogen-free | Contains no phosphoric acid esters
- Valve manifold design
- Modular, pneumatic valve sizes can be mixed
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8130722. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
