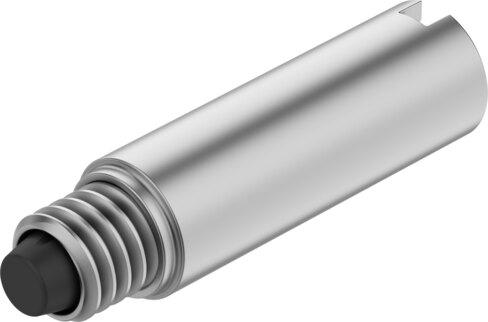

Name: Festo 8131074 Shock absorber DYEF-G8-M10-Y1-F1A
Brand: Festo

Shock absorber DYEF-G8-M10-Y1-F1A

The Festo 8131074 is an M10 industrial component featuring a 1 mm stroke and elastic cushioning rings or pads at both ends without a fixed metal stop. Constructed with a high-alloy steel housing and NBR seals, this part weighs 41 g, offers a maximum tightening torque of 3 Nm, and achieves a maximum energy absorption per stroke of 0.25 J at a maximum impact velocity of 0.8 m/s. It operates within an ambient temperature range of -10 °C to 60 °C, features a corrosion resistance class of CRC 2, and complies with VDMA24364-B2-L LABS conformity and RoHS material restrictions. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8131074
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8131074.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: M10
Stroke: 1 mm
Cushioning: Elastic cushioning rings/pads at both ends, without xed metal stop
Mounting position: Any
Position sensing: None
Variants: Metals with copper, zinc or nickel by mass as main constituent are | excluded from use. Exceptions are nickel in steel, chemically nickel- | plated surfaces, printed circuit boards, cables, electrical plug connectors | and coils.
Max. impact velocity: 0.8 m/s
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Ambient temperature: -10 °C...60 °C
Cushioning length: 1 mm
Max. tightening torque: 3 Nm
Max. energy absorption per stroke: 0.25 J
Product weight: 41 g
Type of mounting: With threaded sleeve
Note on materials: RoHS compliant
Seals material: NBR
Housing material: High-alloy steel

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8131074. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
