Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

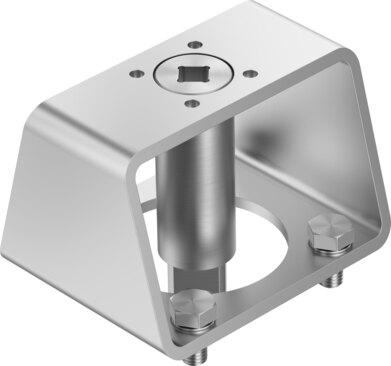

Reference imageConfirm configuration by manufacturer part number.
Festo
8131545
Mounting kit DARQ-K-V-F12S27-F07S14-R13
The Festo 8131545 is an industrial component featuring a mounting kit structural design with a square drive and external square, manufactured in accordance with EN 15081 and ISO 5211 standards at a product weight of 2655 g. This assembly incorporates a high-alloy stainless steel quick-coupling, disc, and screws paired with a steel mounting adapter, delivering a corrosion resistance class of 2 and VDMA24364 Zone III LABS conformity with RoHS-compliant materials. Connection 1 functions as an actuator outlet utilizing an SW27 design and drilling pattern 12, while Connection 2 functions as a reducing outlet featuring an SW14 design and hole pattern 07. Submit the exact part number, quantity, and application requirements to request a quote for this pack size 1 unit.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8131545
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8131545.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- EN 15081 | ISO 5211
- Pack size
- 1
- Structural design
- Square drive and external square | Mounting kit
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Product weight
- 2655 g
- Connection 1, function
- Actuator outlet
- Connection 1, design
- SW27 | Drilling pattern 12
- Connection 2, function
- Reducing outlet
- Connection 2, design
- SW14 | Hole pattern 07
- Note on materials
- RoHS compliant
- Quick-coupling material
- high-alloy stainless steel
- Mounting adapter material
- Steel
- Disc material
- high-alloy stainless steel
- Material of screws
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8131545. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
