Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

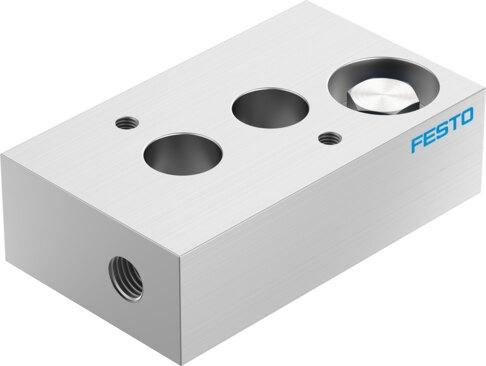

Reference imageConfirm configuration by manufacturer part number.
Festo
8131546
Control plate DADG-FM-VDE1G18
Manufactured by Festo as part number 8131546, this industrial component features direct threaded mounting on the end cap for installation in any mounting position. The unit operates within a pressure range of 0.2 MPa to 0.8 MPa utilizing compressed air conforming to ISO 8573-1:2010 [7:4:4], with oil lubrication permitted and required for continued operation. Constructed with an anodized aluminum housing, NBR and high-alloy stainless steel seals, nickel-plated brass screws, and a product weight of 227 g, it complies with VDI/VDE 3845 (NAMUR), VDMA24364 Zone III LABS conformity, and RoHS material standards while withstanding ambient temperatures from -20 °C to 80 °C under a maximum tightening torque of 9 Nm and G1/8 pneumatic connections. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8131546
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8131546.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- VDI/VDE 3845 (NAMUR)
- Mounting position
- Any
- Operating pressure
- 0.2 MPa...0.8 MPa | 2 bar...8 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Ambient temperature
- -20 °C...80 °C
- Max. tightening torque
- 9 Nm
- Product weight
- 227 g
- Type of mounting
- Threaded direct mounting on end cap
- Pneumatic connection
- G1/8
- Note on materials
- RoHS compliant
- Seals material
- NBR | high-alloy stainless steel
- Housing material
- Anodized aluminum
- Material of screws
- Brass, nickel-plated
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8131546. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
