Festo
8132355

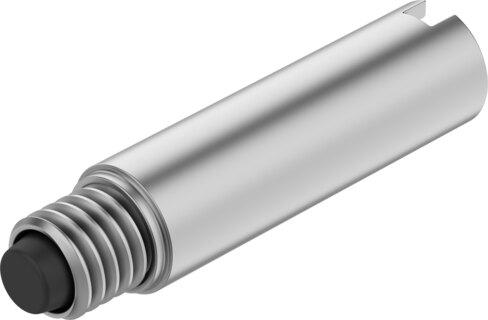

Shock absorber DYEF-G8-M12-Y1-F1A
The Festo 8132355 is an M12 industrial component featuring a 1.2 mm stroke and a maximum impact velocity of 0.8 m/s, utilizing elastic cushioning rings at both ends without a fixed metal stop. Constructed with a high-alloy steel housing and NBR seals, this part weighs 72.5 g, provides a CRC 2 moderate corrosion resistance class, and operates within an ambient temperature range of -10 °C to 60 °C. It accommodates a maximum tightening torque of 5 Nm and a maximum energy absorption of 0.35 J per stroke, featuring a threaded sleeve mounting design that adheres to VDMA24364-B2-L LABS conformity and RoHS material restrictions with specific metal exclusions. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8132355
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8132355.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- M12
- Stroke
- 1.2 mm
- Cushioning
- Elastic cushioning rings/pads at both ends, without xed metal stop
- Mounting position
- Any
- Position sensing
- None
- Variants
- Metals with copper, zinc or nickel by mass as main constituent are | excluded from use. Exceptions are nickel in steel, chemically nickel- | plated surfaces, printed circuit boards, cables, electrical plug connectors | and coils.
- Max. impact velocity
- 0.8 m/s
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -10 °C...60 °C
- Cushioning length
- 1.2 mm
- Max. tightening torque
- 5 Nm
- Max. energy absorption per stroke
- 0.35 J
- Product weight
- 72.5 g
- Type of mounting
- With threaded sleeve
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Housing material
- High-alloy steel
