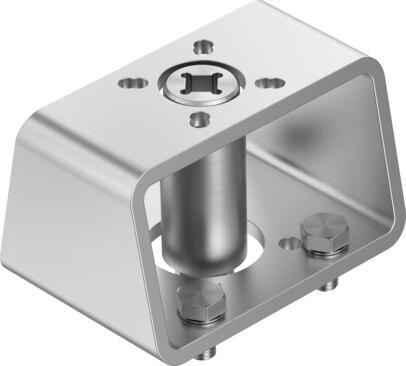

Reference imageConfirm configuration by manufacturer part number.
Festo
8132814
Mounting kit DARQ-K-V-F07S17-F03S9-R13
The Festo 8132814 industrial component is a mounting kit featuring a square drive and external square structural design conforming to EN 15081 and ISO 5211 norms. Weighing 866 g, this assembly incorporates a steel mounting adapter alongside high-alloy stainless steel screws, discs, and quick-coupling materials that provide a corrosion resistance class of CRC 2 and VDMA24364 Zone III LABS conformity with RoHS compliance. Connection 1 functions as an actuator outlet utilizing an SW17 design with a 0705 hole pattern, while Connection 2 serves as a reducing outlet featuring an SW9 design with a 0403 hole pattern. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8132814
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8132814.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- EN 15081 | ISO 5211
- Pack size
- 1
- Structural design
- Square drive and external square | Mounting kit
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Product weight
- 866 g
- Connection 1, function
- Actuator outlet
- Connection 1, design
- SW17 | Hole pattern 0705
- Connection 2, function
- Reducing outlet
- Connection 2, design
- SW9 | Hole pattern 0403
- Note on materials
- RoHS compliant
- Quick-coupling material
- high-alloy stainless steel
- Mounting adapter material
- Steel
- Disc material
- high-alloy stainless steel
- Material of screws
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8132814. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
