Festo
8133065

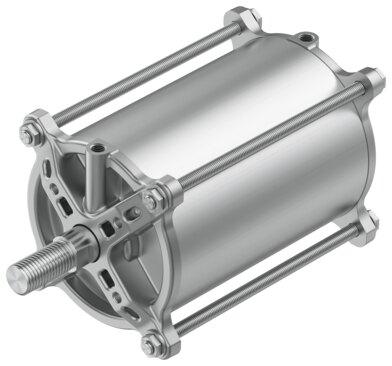

Linear actuator DFPC-160- -
The Festo part number 8133065 is a double-acting industrial component featuring a 160 mm piston diameter, an F10 flange hole pattern, and a stroke ranging from 10 mm to 1600 mm. Operating within a pressure range of 0.2 MPa to 0.8 MPa (2 bar to 8 bar / 29 psi to 116 psi) at a nominal pressure of 0.6 MPa (6 bar / 87 psi), this structural design includes a piston, piston rod, tie rod 1, and cylinder barrel with elastic cushioning rings or pads at both ends. Certified for use in ATEX Zone 1, Zone 2, Zone 21, and Zone 22 with EPL Gb (GB) and EPL Db (GB) explosion protection, it accommodates any mounting position and position sensing via proximity switch, alongside available variants such as ATEX approval and extended piston rods. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8133065
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8133065.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size of valve actuator
- 160
- Flange hole pattern
- F10
- Stroke
- 10 mm...1600 mm
- Piston diameter
- 160 mm
- Standard connection for valve
- ISO 5210
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Piston | Piston rod | Tie rod 1 | Cylinder barrel
- Position sensing
- Via proximity switch
- Variants
- EX protection approval (ATEX) | Extended external thread piston rod | Special thread on piston rod | Piston rod with external thread shortened at one end | Extended piston rod | Spacer bolt on the bearing cap end
- Operating pressure
- 0.2 MPa...0.8 MPa | 2 bar...8 bar | 29 psi...116 psi
- Nominal operating pressure
- 0.6 MPa | 6 bar | 87 psi
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX)
- UKCA marking (see declaration of conformity)
- acc. to UK EX instructions
- Explosion protection certication outside the EU
- EPL Db (GB) | EPL Gb (GB)
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 1 (UKEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 21 (UKEX) | Zone 22 (ATEX)
- ATEX category gas
- II 2G
