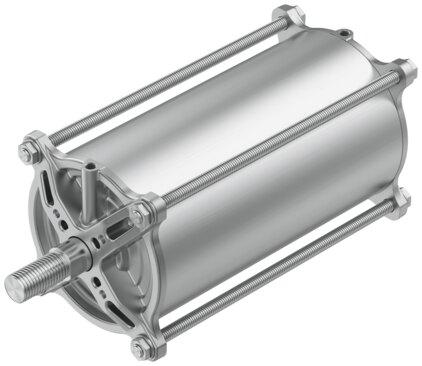

Reference imageConfirm configuration by manufacturer part number.
Festo
8133104
Linear actuator DFPC-200-300-D
The Festo part number 8133104 is a double-acting industrial component featuring a 200 mm piston diameter, a 300 mm stroke, and an F10 flange hole pattern conforming to the ISO 5210 standard connection for valves. Built with a piston, piston rod, tie rod 1, and cylinder barrel structural design, this unit operates within a pressure range of 0.2 MPa to 0.8 MPa (2 bar to 8 bar) and delivers a theoretical retracting force of 18096 N at 6 bar. Position sensing is accomplished via a proximity switch, while elastic cushioning rings or pads at both ends absorb an impact energy of 4.8 J across an ambient temperature range of -20 °C to 80 °C. Please submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8133104
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8133104.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size of valve actuator
- 200
- Flange hole pattern
- F10
- Stroke
- 300 mm
- Piston diameter
- 200 mm
- Standard connection for valve
- ISO 5210
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Piston | Piston rod | Tie rod 1 | Cylinder barrel
- Position sensing
- Via proximity switch
- Operating pressure
- 0.2 MPa...0.8 MPa | 2 bar...8 bar | 29 psi...116 psi
- Nominal operating pressure
- 0.6 MPa | 6 bar | 87 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Vibration resistance
- Transport application test with severity level 1 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 4.8 J
- Theoretical force at 6 bar, retracting
- 18096 N
- Theoretical force at 6 bar, advancing
- 18850 N
- Air consumption, retracting, per 10 mm stroke
- 2.111 l
- Air consumption advancing per 10 mm stroke
- 2.199 l
- Moving mass at 0 mm stroke
- 3575.4 g
- Additional moving mass per 10 mm stroke
- 105.31 g
- Product weight
- 17930 g
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8133104. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
