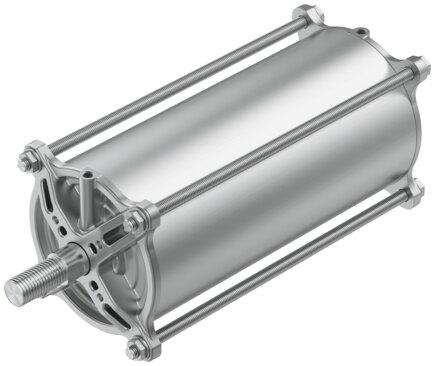

Reference imageConfirm configuration by manufacturer part number.
Festo
8133105
Linear actuator DFPC-200-350-D
The Festo 8133105 is a double-acting industrial component featuring a 200 mm piston diameter, a 350 mm stroke, and an F10 flange hole pattern with an ISO 5210 standard valve connection. Operating on compressed air within a pressure range of 0.2 MPa to 0.8 MPa (2 bar to 8 bar), this unit incorporates elastic cushioning rings at both ends and delivers a theoretical retracting force of 18096 N at 6 bar. Position sensing is achieved via proximity switch, and the structural design integrates a piston, piston rod, tie rod 1, and cylinder barrel for an ambient temperature range of -20 °C to 80 °C. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8133105
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8133105.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size of valve actuator
- 200
- Flange hole pattern
- F10
- Stroke
- 350 mm
- Piston diameter
- 200 mm
- Standard connection for valve
- ISO 5210
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Piston | Piston rod | Tie rod 1 | Cylinder barrel
- Position sensing
- Via proximity switch
- Operating pressure
- 0.2 MPa...0.8 MPa | 2 bar...8 bar | 29 psi...116 psi
- Nominal operating pressure
- 0.6 MPa | 6 bar | 87 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Vibration resistance
- Transport application test with severity level 1 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 4.8 J
- Theoretical force at 6 bar, retracting
- 18096 N
- Theoretical force at 6 bar, advancing
- 18850 N
- Air consumption, retracting, per 10 mm stroke
- 2.111 l
- Air consumption advancing per 10 mm stroke
- 2.199 l
- Moving mass at 0 mm stroke
- 3575.4 g
- Additional moving mass per 10 mm stroke
- 105.31 g
- Product weight
- 19210 g
