Festo
8135911
Solenoid coil VACS-C-R4-1RAL
The Festo 8135911 is an electrical industrial component featuring any mounting position, IP65 protection, and an IK06 impact energy value with an integrated LED signal status display. Built for continuous operation, it operates at a 100% duty cycle with Class H insulation for both the component and enameled wire, drawing a nominal pick-up current of 138 mA up to 70 ms followed by a current reduction to 50 mA within permissible voltage fluctuations of +/- 10%. It conforms to DESINA and IEC 61010-1 standards, carries c UL us recognition (UL MH18122), CE marking under the EU EMC and RoHS directives, and UKCA marking, while offering a CRC 2 moderate corrosion stress rating and VDMA24364-B1/B2-L LABS conformity across a medium temperature range of -20 °C to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8135911
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8135911.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Actuation type
- Electrical
- Mounting position
- Any
- Conforms to standard
- DESINA | IEC 61010-1
- Impact energy value
- IK06
- Signal status display
- LED
- Duty cycle
- 100%
- Insulation class
- H
- Enameled wire insulation class
- H
- Nominal pick-up current per solenoid coil
- 138 mA up to 70 ms
- Nominal current with current reduction
- 50 mA after 70 ms
- Coil characteristics
- 24VDC:NS1,2:HS3.3
- Permissible voltage uctuations
- +/- 10%
- Certication
- c UL us - recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Certicate issuing authority
- UL MH18122
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -20 °C...60 °C
- Degree of protection
- IP65
- Ambient temperature
- -20 °C...60 °C
- Product weight
- 33 g
- Max. cable length
- 30 m

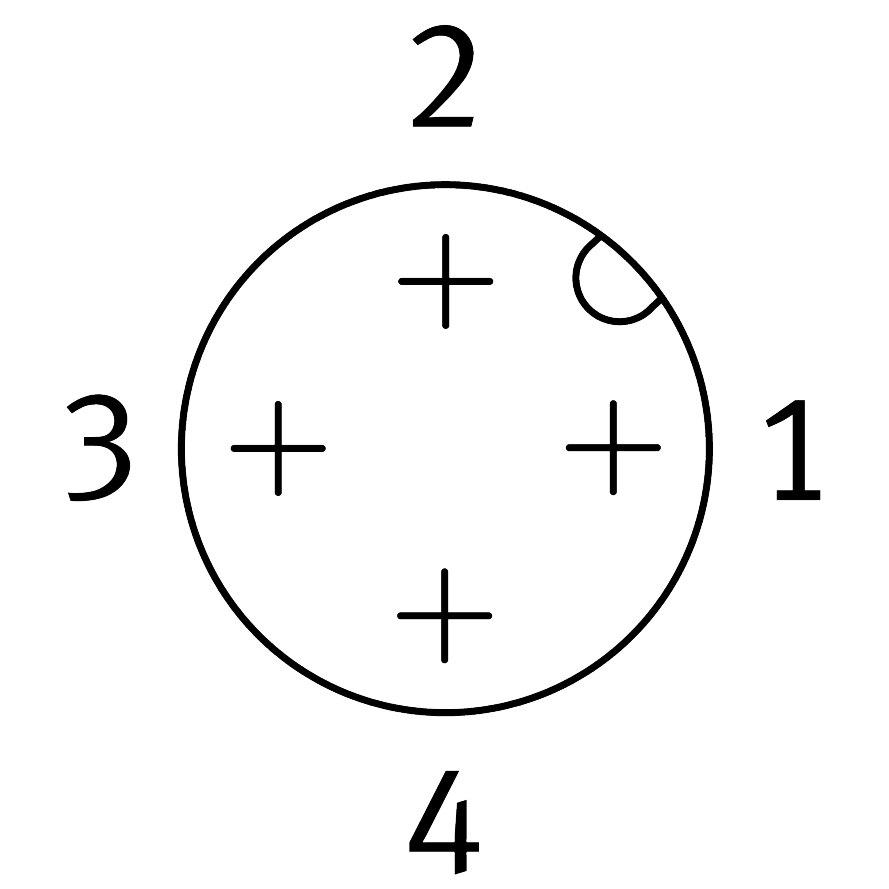

- Electrical connection 1, connection type
- Plug
- Electrical connection 1, connection technology
- M12x1 A-coded as per EN 61076-2-101
- Electrical connection 1, number of pins/wires
- 4
- Electrical connection 1, type of mounting
- Screw-type lock
