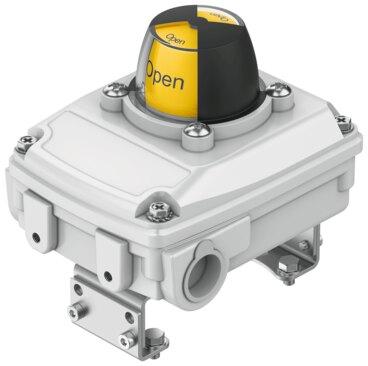

Name: Festo 8137094 Limit switch box SRBC-CA4-YR90-MW-22A-1W-C2
Brand: Festo

Limit switch box SRBC-CA4-YR90-MW-22A-1W-C2

The Festo 8137094 is an industrial component utilizing a mechanical and electrical measuring principle with a contact-based switching output and a single-pin toggle switch element function. It features an Omron SS-5 microswitch, supports an operating voltage range of 0 V to 230 V AC and 0 V to 30 V DC with a maximum output current of 3 A for both AC and DC, and operates within an ambient temperature range of -20 °C to 80 °C. Certified to SIL 3 with documentation issued by Eurocert under SIL202587141, the unit carries c CSA us (OL) certification alongside CE and UKCA markings compliant with relevant EU and UK directives and RoHS standards. Electrical integration is achieved via a 10-pin straight terminal strip utilizing screw and spring-loaded terminals. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8137094
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8137094.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Certication: c CSA us (OL)
CE marking (see declaration of conformity): As per EU low voltage directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK RoHS instructions | To UK instructions for electrical equipment
Certicate issuing authority: Eurocert. SIL202587141
Note on materials: RoHS compliant
Safety integrity level (SIL): SIL 3
Measuring principle: Mechanical/electrical
Ambient temperature: -20 °C...80 °C
Switching output: Contact-based
Switching element function: Toggle switch, single-pin
Max. output current AC: 3 A
Max. output current DC: 3 A
Operating voltage range AC: 0 V...230 V
DC operating voltage range: 0 V...30 V
Microswitch type: Omron SS-5
Electrical connection: Screw terminal
Electrical connection 1, connection type: Terminal strip
Electrical connection 1, cable outlet: Straight
Electrical connection 1, connection technology: Spring-loaded terminal
Electrical connection 1, number of pins/wires: 10
Closable nominal conductor cross-section: 0.25 mm²...2.5 mm²
Approved cable diameter: 5 mm...13 mm
Dimensions W x L x H: 127 mm x 98 mm x 122 mm
Connection point for positioner and position sensor conforms to: VDI/VDE 3845 Size AA 1
standard: VDI/VDE 3845 Size AA 2 | VDI/VDE 3845 Size AA 3
Mounting position: Any
Product weight: 800 g
Housing colour: Gray
Housing material: Die-cast aluminum

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8137094. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
