Name: Festo 8137095 Limit switch box SRBC-CA4-YR90-MW-1-1WG-C2-EX6
Brand: Festo

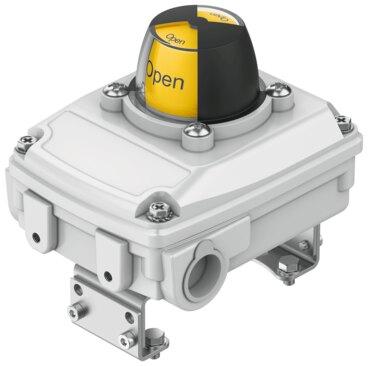

Limit switch box SRBC-CA4-YR90-MW-1-1WG-C2-EX6

The Festo part number 8137095 is an industrial component featuring CE and UKCA markings as per EU and UK explosion protection and RoHS directives, backed by Eurocert, FTZU, and GYJ certificate issuing authorities. This unit is rated for Zone 0, Zone 1, Zone 2, Zone 20, Zone 21, and Zone 22 explosive environments with ATEX category II 1G and II 1D, ignition protections of Ex ia IIC T6/T5 Ga and Ex ia IIIC Txx°C Da, and international EPL Da and Ga certifications. Operating with a maximum input voltage Vi of 30 V, negligibly small effective internal inductance Li and capacitance Ci, and explosive ambient temperatures detailed in ATEX and IECEx certificates, the hardware is RoHS compliant. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8137095
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8137095.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

CE marking (see declaration of conformity): as per EU explosion protection directive (ATEX) | As per EU RoHS directive
UKCA marking (see declaration of conformity): acc. to UK EX instructions | To UK RoHS instructions
Explosion prevention and protection: Zone 0 (ATEX) | Zone 0 (CN) | Zone 0 (IEC-EX) | Zone 0 (UKEX) | Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 20 (ATEX) | Zone 20 (CN) | Zone 20 (IEC-EX) | Zone 20 (UKEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
ATEX category gas: II 1G
Type of ignition protection for gas: Ex ia IIC T6/T5 Ga
ATEX category for dust: II 1D
Type of (ignition) protection for dust: Ex ia IIIC Txx°C Da
Explosion protection certication outside the EU: EPL Da (CN) | EPL Da (GB) | EPL Da (IEC-EX) | EPL Ga (CN) | EPL Ga (GB) | EPL Ga (IEC-EX)
Explosive ambient temperature: See ATEX certicate | See IECEx certicate
Max. input voltage Vi: 30 V
Eﬀective internal inductance Li: Negligibly small
Eﬀective internal capacitance Ci: Negligibly small
Max. input parameter of intrinsically safe circuit: See IECEx certicate | See ATEX certicate
Certicate issuing authority: Eurocert. SIL202587141 | FTZU 17 ATEX 0105X | GYJ20.1409X | IECEx FTZU 17.0017X
Note on materials: RoHS compliant

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8137095. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
