Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

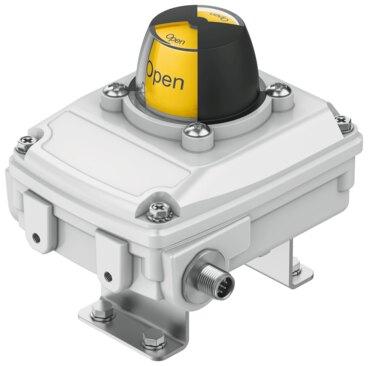

Reference imageConfirm configuration by manufacturer part number.
Festo
8137098
Limit switch box SRBC-CA3-YR90-MW-1-1W-M12
The Festo 8137098 is a mechanical and electrical industrial component featuring a contact-based switching output with a single-pin toggle switch utilizing an Omron SS-5 microswitch. It operates within a DC operating voltage range of 0 V to 30 V at a max DC output current of 2 A, across an ambient temperature range of -20 °C to 80 °C. Rated for Safety Integrity Level SIL 3, this unit includes an M12 straight round plug connection with 8 pins, A-coded per EN 61076-2-101, accommodating conductor cross-sections from 0.25 mm² to 2.5 mm² and cable diameters from 5 mm to 13 mm. It complies with EU EMC and UK RoHS directives, carrying CE and UKCA markings certified by Eurocert under certificate SIL202587141. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8137098
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8137098.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- CE marking (see declaration of conformity)
- As per EU EMC directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Certicate issuing authority
- Eurocert. SIL202587141
- Note on materials
- RoHS compliant
- Safety integrity level (SIL)
- SIL 3
- Measuring principle
- Mechanical/electrical
- Ambient temperature
- -20 °C...80 °C
- Switching output
- Contact-based
- Switching element function
- Toggle switch, single-pin
- Max. output current DC
- 2 A
- DC operating voltage range
- 0 V...30 V
- Microswitch type
- Omron SS-5
- Electrical connection
- M12
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, design
- Round
- Electrical connection 1, connection technology
- M12x1 A-coded as per EN 61076-2-101
- Electrical connection 1, number of pins/wires
- 8
- Closable nominal conductor cross-section
- 0.25 mm²...2.5 mm²
- Approved cable diameter
- 5 mm...13 mm
- Dimensions W x L x H
- 127 mm x 111 mm x 122 mm
- Connection point for positioner and position sensor conforms to
- VDI/VDE 3845 Size AA 1
- Mounting position
- Any
- Product weight
- 800 g
- Housing colour
- Gray
- Housing material
- Die-cast aluminum
- Seals material
- NBR
- Shaft material
- high-alloy stainless steel
- Material of screws
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8137098. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
