8137099

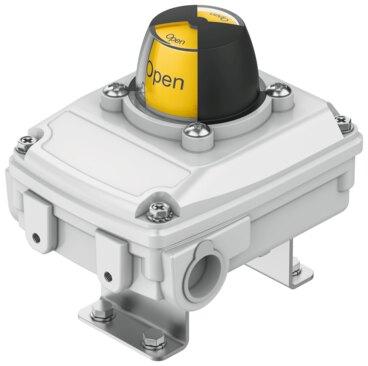

Name: Festo 8137099 Limit switch box SRBC-CA3-YR90-MW-1-1WG-M12
Brand: Festo

Limit switch box SRBC-CA3-YR90-MW-1-1WG-M12

The Festo part number 8137099 is an industrial component featuring a mechanical and electrical measuring principle with a contact-based gold switching output utilizing an Omron D2SW-01L1T microswitch and a single-pin toggle switch element function. It operates within a DC operating voltage range of 0 V to 30 V at a maximum DC output current of 100 mA across an ambient temperature range of -40 °C to 80 °C, achieving a Safety Integrity Level of SIL 3. The unit includes an M12 straight round plug electrical connection with 8 pins, A-coding per EN 61076-2-101, a closable nominal conductor cross-section of 0.25 mm² to 2.5 mm², and an approved cable diameter of 5 mm to 13 mm, while carrying CE and UKCA markings alongside RoHS compliance verified by Eurocert under certificate SIL202587141. Submit the exact part number, quantity, and application requirements to receive a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8137099
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8137099.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

CE marking (see declaration of conformity): As per EU EMC directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions
Certicate issuing authority: Eurocert. SIL202587141
Note on materials: RoHS compliant
Safety integrity level (SIL): SIL 3
Measuring principle: Mechanical/electrical
Ambient temperature: -40 °C...80 °C
Switching output: Contact-based (gold)
Switching element function: Toggle switch, single-pin
Max. output current DC: 100 mA
DC operating voltage range: 0 V...30 V
Microswitch type: Omron D2SW-01L1T
Electrical connection: M12
Electrical connection 1, connection type: Plug
Electrical connection 1, cable outlet: Straight
Electrical connection 1, design: Round
Electrical connection 1, connection technology: M12x1 A-coded as per EN 61076-2-101
Electrical connection 1, number of pins/wires: 8
Closable nominal conductor cross-section: 0.25 mm²...2.5 mm²
Approved cable diameter: 5 mm...13 mm
Dimensions W x L x H: 127 mm x 111 mm x 122 mm
Connection point for positioner and position sensor conforms to: VDI/VDE 3845 Size AA 1
Mounting position: Any
Product weight: 800 g
Housing colour: Gray
Housing material: Die-cast aluminum
Seals material: VMQ (silicone)
Shaft material: high-alloy stainless steel

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8137099. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
