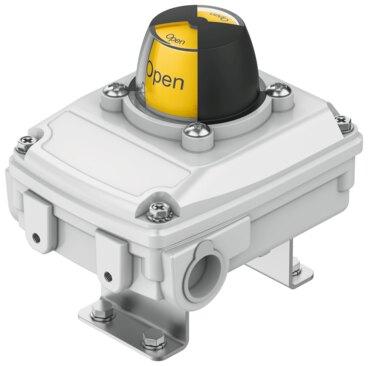

Reference imageConfirm configuration by manufacturer part number.
Festo
8137100
Limit switch box SRBC-CA3-YR90-N-20N-ZC-M12
The Festo 8137100 is an inductive industrial component featuring a NAMUR switching output with an NC contact switching element function, operating on an 8.2 V DC operating voltage range with a maximum output current of 3 mA and a maximum switching frequency of 2000 Hz. Utilizing a P&F NCB2-V3-N0 microswitch type and an M12 straight round plug electrical connection with M12x1 A-coded connection technology as per EN 61076-2-101, this device operates within an ambient temperature range of -20 °C to 80 °C and achieves a Safety Integrity Level of SIL 3, backed by certificate issuing authority Eurocert SIL202587141. It carries RCM compliance, c CSA us (OL), and KC-EMV markings, along with CE and UKCA markings per EU and UK EMC and RoHS directives, and is RoHS compliant. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8137100
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8137100.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Certication
- RCM compliance mark | c CSA us (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- KC characters
- KC-EMV
- Certicate issuing authority
- Eurocert. SIL202587141
- Note on materials
- RoHS compliant
- Safety integrity level (SIL)
- SIL 3
- Measuring principle
- Inductive
- Ambient temperature
- -20 °C...80 °C
- Switching output
- NAMUR
- Switching element function
- NC contact
- Max. switching frequency
- 2000 Hz
- Max. output current DC
- 3 mA
- DC operating voltage range
- 8.2 V
- Microswitch type
- P&F NCB2-V3-N0
- Electrical connection
- M12
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, design
- Round
- Electrical connection 1, connection technology
- M12x1 A-coded as per EN 61076-2-101
- Electrical connection 1, number of pins/wires
- 8
- Closable nominal conductor cross-section
- 0.25 mm²...2.5 mm²
- Approved cable diameter
- 5 mm...13 mm
- Dimensions W x L x H
- 127 mm x 111 mm x 122 mm
- Connection point for positioner and position sensor conforms to
- VDI/VDE 3845 Size AA 1
- Mounting position
- Any
- Product weight
- 800 g
- Housing colour
- Gray
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8137100. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
