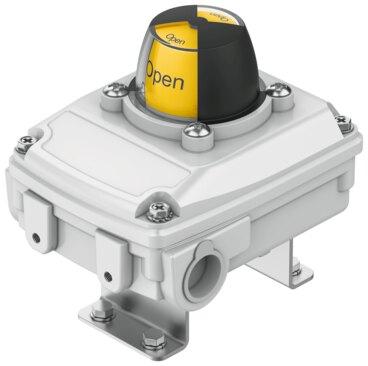

Name: Festo 8137101 Limit switch box SRBC-CA3-YR90-N-1-P-M12
Brand: Festo

Limit switch box SRBC-CA3-YR90-N-1-P-M12

The Festo 8137101 is an inductive industrial component utilizing a P&F NBB2-V3-E2 microswitch type with an N.O. contact PNP switching output and a maximum switching frequency of 1000 Hz. It operates within a DC voltage range of 10 V to 30 V, featuring pulsed short-circuit protection, reverse polarity protection for all electrical connections, and a Safety Integrity Level of SIL 3. Certified with RCM, c CSA us (OL), and KC-EMV, this RoHS-compliant unit functions across an ambient temperature range of -20 °C to 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8137101
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8137101.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Certication: RCM compliance mark | c CSA us (OL)
CE marking (see declaration of conformity): As per EU EMC directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions
KC characters: KC-EMV
Certicate issuing authority: Eurocert. SIL202587141
Note on materials: RoHS compliant
Safety integrity level (SIL): SIL 3
Measuring principle: Inductive
Ambient temperature: -20 °C...80 °C
Switching output: PNP
Switching element function: N.O. contact
Max. switching frequency: 1000 Hz
Max. output current DC: 100 mA
Voltage drop: 3 V
Residual current: 0 mA...0.5 mA
Short-circuit protection: Pulsed
DC operating voltage range: 10 V...30 V
Idle current: 15 mA
Reverse polarity protection: for all electrical connections
Microswitch type: Switch type P&F NBB2-V3-E2
Electrical connection: M12
Electrical connection 1, connection type: Plug
Electrical connection 1, cable outlet: Straight
Electrical connection 1, design: Round
Electrical connection 1, connection technology: M12x1 A-coded as per EN 61076-2-101
Electrical connection 1, number of pins/wires: 8
Closable nominal conductor cross-section: 0.25 mm²...2.5 mm²
Approved cable diameter: 5 mm...13 mm

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8137101. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
