Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

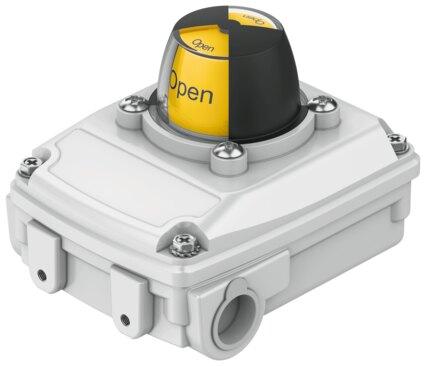

Reference imageConfirm configuration by manufacturer part number.
Festo
8137103
Limit switch box SRBC-CA5-YR90-MW-22A-1W-C2
The Festo part number 8137103 is a mechanical and electrical industrial component featuring a contact-based switching output with a single-pin toggle switch and an Omron SS-5 microswitch type. It operates within a voltage range of 0 V to 230 V AC and 0 V to 30 V DC, handling a maximum output current of 3 A for both AC and DC, and functions within an ambient temperature range of -20 °C to 80 °C. The unit includes a 10-pin straight terminal strip electrical connection utilizing spring-loaded terminals and screw terminals, and is certified to SIL 3 with c CSA us (OL) certification, Eurocert SIL202587141, RoHS material compliance, and CE and UKCA markings per relevant EU and UK directives. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8137103
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8137103.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Certication
- c CSA us (OL)
- CE marking (see declaration of conformity)
- As per EU low voltage directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK RoHS instructions | To UK instructions for electrical equipment
- Certicate issuing authority
- Eurocert. SIL202587141
- Note on materials
- RoHS compliant
- Safety integrity level (SIL)
- SIL 3
- Measuring principle
- Mechanical/electrical
- Ambient temperature
- -20 °C...80 °C
- Switching output
- Contact-based
- Switching element function
- Toggle switch, single-pin
- Max. output current AC
- 3 A
- Max. output current DC
- 3 A
- Operating voltage range AC
- 0 V...230 V
- DC operating voltage range
- 0 V...30 V
- Microswitch type
- Omron SS-5
- Electrical connection
- Screw terminal
- Electrical connection 1, connection type
- Terminal strip
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology
- Spring-loaded terminal
- Electrical connection 1, number of pins/wires
- 10
- Closable nominal conductor cross-section
- 0.25 mm²...2.5 mm²
- Approved cable diameter
- 5 mm...13 mm
- Dimensions W x L x H
- 114 mm x 98 mm x 122 mm
- Type of mounting
- on ange according to ISO 5211
- Mounting position
- Any
- Product weight
- 800 g
- Housing colour
- Gray
- Housing material
- Die-cast aluminum
- Seals material
- NBR
- Shaft material
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8137103. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
