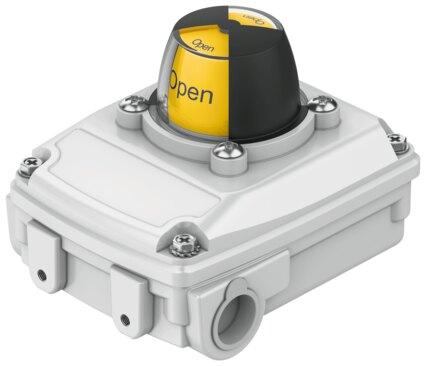

Name: Festo 8137104 Limit switch box SRBC-CA5-YR90-MW-1-1WG-C2-EX6
Brand: Festo

Limit switch box SRBC-CA5-YR90-MW-1-1WG-C2-EX6

The Festo part number 8137104 is an industrial component certified for Zone 0, Zone 1, Zone 2, Zone 20, Zone 21, and Zone 22 hazardous environments under ATEX, CN, IEC-EX, and UKEX regulations. It features ATEX categories II 1G and II 1D with ignition protection types Ex ia IIC T6/T5 Ga and Ex ia IIIC Txx°C Da, supported by EPL Ga and EPL Da certifications alongside a maximum input voltage Vi of 30 V with negligibly small effective internal inductance Li and capacitance Ci. Compliance documentation includes EU and UK directives for EMC, RoHS, and explosion protection, backed by certificate issuing authorities Eurocert, FTZU, and GYJ. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8137104
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8137104.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

CE marking (see declaration of conformity): As per EU EMC directive | as per EU explosion protection directive (ATEX) | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | acc. to UK EX instructions | To UK RoHS instructions
Explosion prevention and protection: Zone 0 (ATEX) | Zone 0 (CN) | Zone 0 (IEC-EX) | Zone 0 (UKEX) | Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 20 (ATEX) | Zone 20 (CN) | Zone 20 (IEC-EX) | Zone 20 (UKEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
ATEX category gas: II 1G
Type of ignition protection for gas: Ex ia IIC T6/T5 Ga
ATEX category for dust: II 1D
Type of (ignition) protection for dust: Ex ia IIIC Txx°C Da
Explosion protection certication outside the EU: EPL Da (CN) | EPL Da (GB) | EPL Da (IEC-EX) | EPL Ga (CN) | EPL Ga (GB) | EPL Ga (IEC-EX)
Explosive ambient temperature: See ATEX certicate | See IECEx certicate
Max. input voltage Vi: 30 V
Eﬀective internal inductance Li: Negligibly small
Eﬀective internal capacitance Ci: Negligibly small
Max. input parameter of intrinsically safe circuit: See IECEx certicate | See ATEX certicate
Certicate issuing authority: Eurocert. SIL202587141 | FTZU 17 ATEX 0105X | GYJ20.1409X

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8137104. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
