Festo
8137106

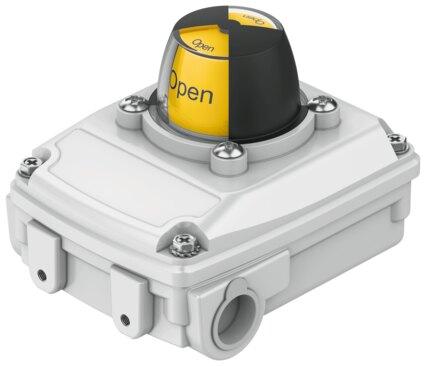

Limit switch box SRBC-CA5-YR90-N-1-P-C2
The Festo 8137106 is an inductive industrial component featuring a PNP switching output with an N.O. contact, operating within a DC voltage range of 10 V to 30 V and a max switching frequency of 1000 Hz. This unit incorporates pulsed short-circuit protection, reverse polarity protection for all electrical connections, screw terminals, and a P&F NBB2-V3-E2 microswitch type, while achieving a Safety Integrity Level of SIL 3. It carries RCM, c CSA us, and KC-EMV certifications, along with CE and UKCA markings per EMC and RoHS directives, and operates in ambient temperatures from -20 °C to 80 °C. Please submit the exact part number, quantity, and application requirements for a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8137106
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8137106.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Certication
- RCM compliance mark | c CSA us (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- KC characters
- KC-EMV
- Certicate issuing authority
- Eurocert. SIL202587141
- Note on materials
- RoHS compliant
- Safety integrity level (SIL)
- SIL 3
- Measuring principle
- Inductive
- Ambient temperature
- -20 °C...80 °C
- Switching output
- PNP
- Switching element function
- N.O. contact
- Max. switching frequency
- 1000 Hz
- Max. output current DC
- 100 mA
- Voltage drop
- 3 V
- Short-circuit protection
- Pulsed
- DC operating voltage range
- 10 V...30 V
- Idle current
- 15 mA
- Reverse polarity protection
- for all electrical connections
- Microswitch type
- Switch type P&F NBB2-V3-E2
- Electrical connection
- Screw terminal
- Electrical connection 1, connection type
- Terminal strip
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology
- Spring-loaded terminal
- Electrical connection 1, number of pins/wires
- 10
- Closable nominal conductor cross-section
- 0.25 mm²...2.5 mm²
- Approved cable diameter
- 5 mm...13 mm
- Dimensions W x L x H
- 114 mm x 98 mm x 122 mm
- Type of mounting
- on ange according to ISO 5211
- Mounting position
- Any
