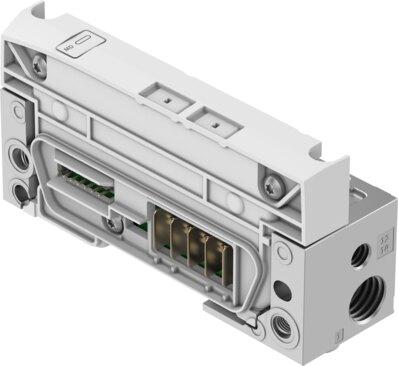

Reference imageConfirm configuration by manufacturer part number.
Festo
8137154
Pneumatic interface VMPA-AP-EPL-E
The Festo part number 8137154 is an industrial component measuring 34.1 mm in width, 107.3 mm in length, and 55.1 mm in height, featuring a Type 32, MPA-FB-AP-VI valve manifold interface and an internal cycle time of 1 ms. Equipped with self-protecting reverse polarity protection, integrated flat plate silencer, ducted exhaust, and an external pilot air supply port, this module provides diagnostics via LED per module and internal communication monitoring for communication errors and electronics or sensors overvoltage or undervoltage. It achieves vibration and shock resistance meeting severity level 2 per FN 942017-4, FN 942017-5, EN 60068-2-6, and EN 60068-2-27 with SG2 on wall mounting, operates with a typical intrinsic current consumption of 35 mA requiring SELV/PELV fixed power supplies, and supports arbitrary mounting positions or horizontal H-rail installation. Submit the exact part number, quantity, and application requirements to receive an official price and lead time quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8137154
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8137154.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 34.1 mm
- Length
- 107.3 mm
- Vibration resistance
- Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
- Note on vibration resistance
- SG2 on wall mounting
- Shock resistance
- Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Note on shock resistance
- SG2 on wall mounting
- Valve manifold interface
- Type 32, MPA-FB-AP-VI
- Reverse polarity protection
- Yes
- Note on reverse polarity protection
- Self-protection
- Mounting position
- Arbitrary, on H-rail: horizontal
- Diagnostics via LED
- Diagnostics per module
- Diagnose per internal communication
- Communication error | Electronics/sensors overvoltage | Electronics/sensors undervoltage
- Integrated function
- Flat plate silencer | Ducted exhaust
- Pilot air supply port
- External
- Module code (hex/dec)
- 0x3053/12371d
- Internal cycle time
- 1 ms
- Dimensions W x L x H
- 34.1 mm x 107.3 mm x 55.1 mm
- Fuse protection (short circuit)
- Additional safety fuse
- Intrinsic current consumption at nominal operating voltage for
- Typically 35 mA
- Note regarding operating voltage
- SELV/PELV xed power supplies required | Note voltage drop
- Nominal operating voltage DC for electronics/sensors
- 24 V
- Nominal operating voltage DC load
- 24 V
- Power failure buffering
- 10 ms
- Potential separation between the supply voltages electronics/sensor
- Yes
- Contamination level
- 2
- Permissible voltage uctuations for electronics/sensors
- ±25%
