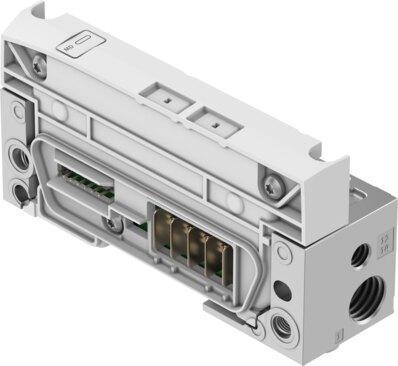

Name: Festo 8137156 Pneumatic interface VMPA-AP-EPL-G
Brand: Festo

Pneumatic interface VMPA-AP-EPL-G

The Festo industrial component, part number 8137156, features dimensions of 34.1 mm x 107.3 mm x 55.1 mm and includes an integrated flat plate silencer with ducted exhaust and an internal pilot air supply port. This module incorporates diagnostics via LED per module alongside internal communication error and voltage monitoring, while offering self-protecting reverse polarity protection and short-circuit fuse protection requiring SELV/PELV fixed power supplies. Designed with an arbitrary mounting position or horizontal H-rail mounting that achieves severity level 2 vibration and shock resistance under specified standards, the unit operates with a 1 ms internal cycle time and a nominal intrinsic current consumption of typically 35 mA. Submit the exact part number, quantity, and application requirements for a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8137156
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8137156.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Width: 34.1 mm
Length: 107.3 mm
Vibration resistance: Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
Note on vibration resistance: SG2 on wall mounting
Shock resistance: Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Note on shock resistance: SG2 on wall mounting
Valve manifold interface: Type 32, MPA-FB-AP-VI
Reverse polarity protection: Yes
Note on reverse polarity protection: Self-protection
Mounting position: Arbitrary, on H-rail: horizontal
Diagnostics via LED: Diagnostics per module
Diagnose per internal communication: Communication error | Electronics/sensors overvoltage | Electronics/sensors undervoltage
Integrated function: Flat plate silencer | Ducted exhaust
Pilot air supply port: Internal
Module code (hex/dec): 0x3052/12370d
Internal cycle time: 1 ms
Dimensions W x L x H: 34.1 mm x 107.3 mm x 55.1 mm
Fuse protection (short circuit): Additional safety fuse
Intrinsic current consumption at nominal operating voltage for: Typically 35 mA
Note regarding operating voltage: SELV/PELV xed power supplies required | Note voltage drop
Nominal operating voltage DC for electronics/sensors: 24 V
Nominal operating voltage DC load: 24 V
Power failure buﬀering: 10 ms
Potential separation between the supply voltages electronics/sensor: Yes
Contamination level: 2
Permissible voltage uctuations for electronics/sensors: ±25%

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8137156. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
