Festo
8139790

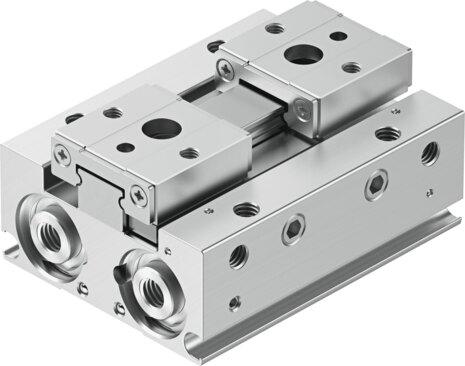

Parallel gripper HPPF-12-12-A
The Festo part number 8139790 is a double-acting pneumatic industrial component featuring two parallel gripper jaws with a size of 12 and a complete stroke of 12 mm, yielding a stroke of 6 mm per jaw. It utilizes a ball guide, a gear rack/pinion structural design with zero angular play and zero backlash, and incorporates elastic cushioning rings or pads at both ends. Operating within a pressure range of 1 bar to 7 bar (14.5 psi to 101.5 psi), this model delivers a repetition accuracy of 0.02 mm, a maximum operating frequency of 2 Hz, and a minimum opening time of 46 ms at 6 bar with position sensing via proximity switch. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8139790
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8139790.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 12
- Complete stroke
- 12 mm
- Stroke per gripper jaw
- 6 mm
- Max. gripper jaw angular play ax, ay
- 0 deg
- Max. gripper jaw backlash Sz
- 0 mm
- Pneumatic gripper repetition accuracy
- 0.02 mm
- Number of gripper jaws
- 2
- Actuator system
- Pneumatic
- Mounting position
- Any
- Mode of operation
- Double-acting
- Cushioning
- Elastic cushioning rings/pads at both ends
- Gripper function
- Parallel
- Gripping force backup
- None
- Structural design
- Flat mounting type for gripper ngers | Gear rack/pinion | Positively driven motion sequence
- Guide
- Ball guide
- Position sensing
- Via proximity switch
- Variants
- Metals with copper, zinc or nickel by mass as main constituent are | excluded from use. Exceptions are nickel in steel, chemically nickel- | plated surfaces, printed circuit boards, cables, electrical plug connectors | and coils.
- Operating pressure
- 0.1 MPa...0.7 MPa | 1 bar...7 bar | 14.5 psi...101.5 psi
- Max. operating frequency of pneumatic gripper
- 2 Hz
- Min. opening time at 6 bar
- 46 ms
- Min. closing time at 6 bar
- 43 ms
- Max. mass per external gripper nger
- 130 g
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
