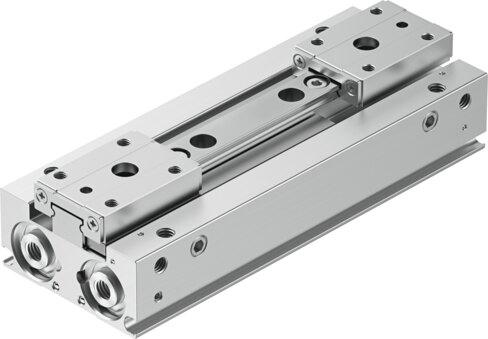

Reference imageConfirm configuration by manufacturer part number.
Festo
8139792
Parallel gripper HPPF-12-48-A
The Festo part number 8139792 is a double-acting pneumatic parallel gripper featuring two jaws, a size 12 designation, and a complete stroke of 48 mm with 24 mm of stroke per gripper jaw. Operating within a pressure range of 1 bar to 7 bar (14.5 psi to 101.5 psi), this component incorporates a ball guide, gear rack and pinion structural design, and elastic cushioning rings or pads at both ends. It achieves a repetition accuracy of 0.02 mm, a maximum operating frequency of 2 Hz, zero gripper jaw angular play, and zero backlash Sz, with position sensing via proximity switch and position mounting in any orientation. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8139792
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8139792.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 12
- Complete stroke
- 48 mm
- Stroke per gripper jaw
- 24 mm
- Max. gripper jaw angular play ax, ay
- 0 deg
- Max. gripper jaw backlash Sz
- 0 mm
- Pneumatic gripper repetition accuracy
- 0.02 mm
- Number of gripper jaws
- 2
- Actuator system
- Pneumatic
- Mounting position
- Any
- Mode of operation
- Double-acting
- Cushioning
- Elastic cushioning rings/pads at both ends
- Gripper function
- Parallel
- Gripping force backup
- None
- Structural design
- Flat mounting type for gripper ngers | Gear rack/pinion | Positively driven motion sequence
- Guide
- Ball guide
- Position sensing
- Via proximity switch
- Variants
- Metals with copper, zinc or nickel by mass as main constituent are | excluded from use. Exceptions are nickel in steel, chemically nickel- | plated surfaces, printed circuit boards, cables, electrical plug connectors | and coils.
- Operating pressure
- 0.1 MPa...0.7 MPa | 1 bar...7 bar | 14.5 psi...101.5 psi
- Max. operating frequency of pneumatic gripper
- 2 Hz
- Min. opening time at 6 bar
- 121 ms
- Min. closing time at 6 bar
- 105 ms
- Max. mass per external gripper nger
- 130 g
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
