8140319

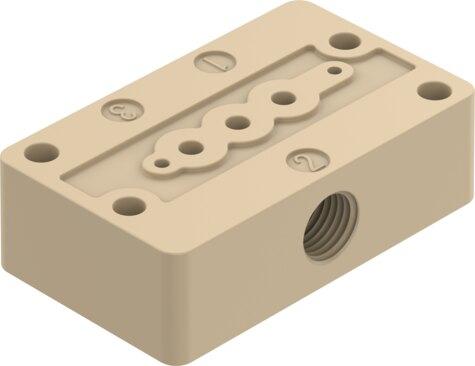

Name: Festo 8140319 Sub-base VABS-K2-12S-20-M6-P
Brand: Festo

Sub-base VABS-K2-12S-20-M6-P

The Festo part number 8140319 is a size 12 industrial component featuring a nominal width of 2 mm and an internal thread M6 fluid connector. Designed with a lateral connection direction and a sub-base mounting type with a through-hole, this single-position part accommodates both liquid and gaseous media across an ambient and medium temperature range of 0 °C to 50 °C. It offers a product weight of 8 g, a corrosion resistance class of CRC 0, and non-reversible flow direction for versatile installation in any mounting position. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8140319
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8140319.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: 12
Nominal width: 2 mm
Fluid connector: Internal thread M6
Mounting position: Any
Structural design: Lateral connection direction
Max. no. of valve positions: 1
Flow direction: Non-reversible
Operating medium: Liquid media | Gaseous media
Information on operating and pilot media: Observe resistance of materials that come into contact with media
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364 Zone III
Storage temperature: -20 °C...70 °C
Temperature of medium: 0 °C...50 °C
Ambient temperature: 0 °C...50 °C
Max. tightening torque for valve mounting: 0.33 Nm
Max. tightening torque: 0.6 Nm
Product weight: 8 g
Sub-base mounting type: With through-hole
Pneumatic valve mounting type: With internal thread
Note on materials: RoHS compliant
Material of sub-base: PEEK

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8140319. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
