Festo
8140320

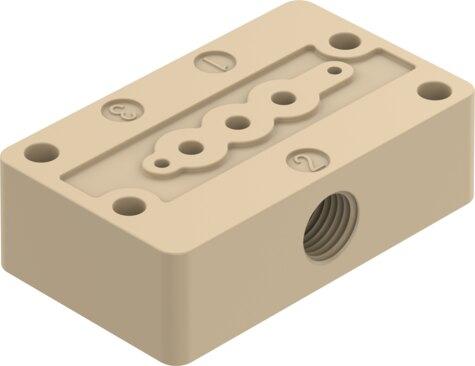

Sub-base VABS-K2-12S-20-U14-P
The Festo part number 8140320 is a size 12 industrial component featuring a lateral connection direction and a nominal width of 2 mm with a 1/4-28 UNF-2B internal thread fluid connector. Engineered with a maximum number of one valve position and a non-reversible flow direction, this 8 g unit supports sub-base mounting with a through-hole and pneumatic valve mounting using an internal thread. It operates with liquid and gaseous media within a temperature range of 0 °C to 50 °C, exhibits a corrosion resistance class of 0 with no corrosion stress, and complies with VDMA24364 Zone III LABS conformity and RoHS material standards. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8140320
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8140320.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 12
- Nominal width
- 2 mm
- Fluid connector
- Internal thread 1/4-28 UNF-2B
- Mounting position
- Any
- Structural design
- Lateral connection direction
- Max. no. of valve positions
- 1
- Flow direction
- Non-reversible
- Operating medium
- Liquid media | Gaseous media
- Information on operating and pilot media
- Observe resistance of materials that come into contact with media
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -20 °C...70 °C
- Temperature of medium
- 0 °C...50 °C
- Ambient temperature
- 0 °C...50 °C
- Max. tightening torque for valve mounting
- 0.33 Nm
- Max. tightening torque
- 0.6 Nm
- Product weight
- 8 g
- Sub-base mounting type
- With through-hole
- Pneumatic valve mounting type
- With internal thread
- Note on materials
- RoHS compliant
- Material of sub-base
- PEEK
