Festo
8140395

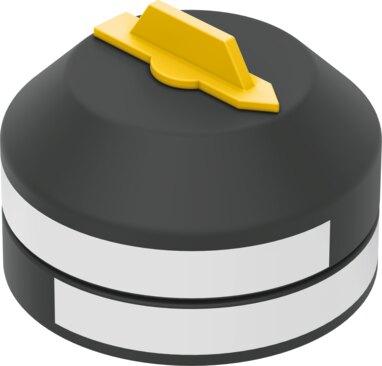

Position indicator SASF-S2-B-V-A20
The Festo 8140395 is an industrial component featuring an adjustable actuating lug and a 0 degree to 360 degree swivel angle adjustment range. Constructed with a black polyamide, polypropylene, and high-alloy stainless steel housing, polyamide spacer element, and high-alloy stainless steel screws, this RoHS-compliant part weighs 96 g with dimensions of Ø 65 x 48.5 mm. It mounts according to VDI/VDE 3845, conforms to VDMA24364 Zone III LABS (PWIS) requirements, and operates in ambient temperatures from -25 °C to 70 °C while meeting EN 60068-2-6 vibration and EN 60068-2-27 shock resistance standards. Submit part number 8140395 with your required quantity and application details to receive an immediate quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8140395
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8140395.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Adjustment range of swivel angle
- 0 deg...360 deg
- Additional functions
- Adjustable actuating lug
- Dimensions W x L x H
- Ø 65 x 48.5
- Vibration resistance
- Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Ambient temperature
- -25 °C...70 °C
- Product weight
- 96 g
- Type of mounting
- As per VDI/VDE 3845
- Housing colour
- Black
- Note on materials
- RoHS compliant
- Spacer element material
- PA
- Housing material
- PA | PP | high-alloy stainless steel
- Material of screws
- high-alloy stainless steel
