Festo
8140936
Connecting cable NEBM-T12G4-R-5-LE4
The Festo 8140936 industrial component is an unshielded cable assembly weighing 410 g and built according to the EN 61076-2-111 norm with an integrated label holder. The field device side features a straight M12x1 T-coded socket with four pins, a screw-type lock, and four occupied wires, while the control side consists of an open cable end with four pins and four occupied wires. This part operates within a DC voltage range of 0 V to 60 V, a current rating of 5 A at 40° C, and a surge resistance of 1.5 kV. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8140936
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8140936.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- EN 61076-2-111
- Cable designation
- With label holder
- Product weight
- 410 g
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Round
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology

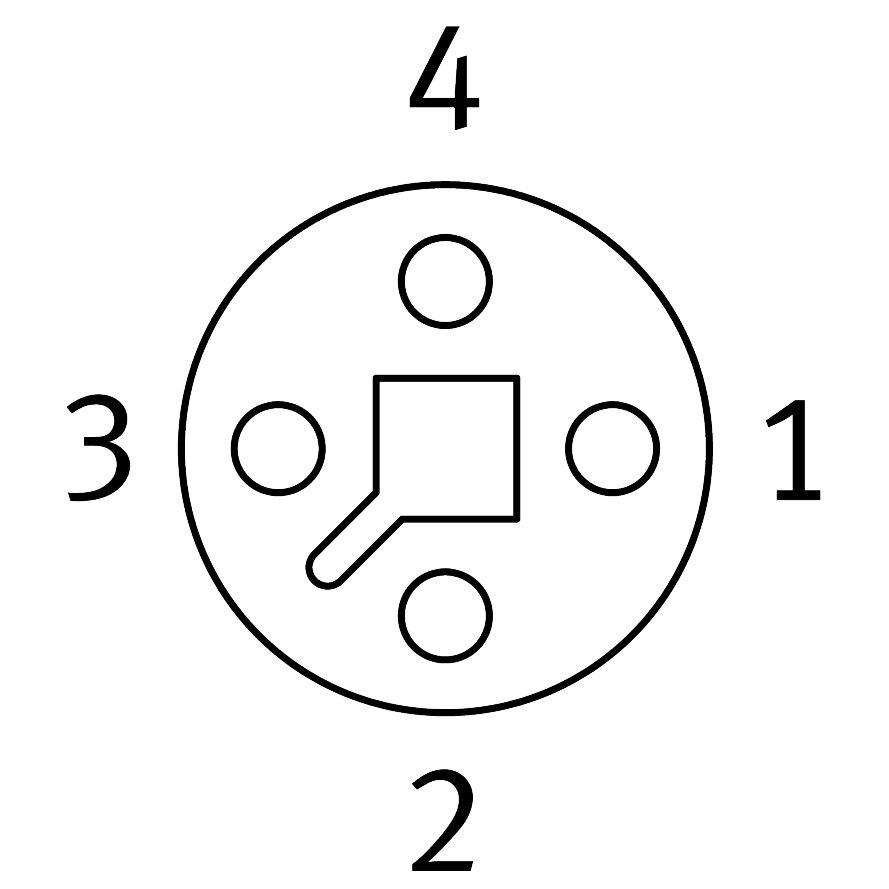

- M12x1, T-coded as per EN 61076-2-111
- Electrical connection 1, number of pins/wires
- 4
- Electrical connection 1, occupied pins/wires
- 4
- Electrical connection 1, type of mounting
- Screw-type lock
- Electrical connection 2, function
- Control side
- Electrical connection 2, connection type
- Cable
- Electrical connection 2, connection technology
- Open end
- Electrical connection 2, number of pins/wires
- 4
- Electrical connection 2, occupied pins/wires
- 4
- DC operating voltage range
- 0 V...60 V
- Current rating at 40° C
- 5 A
- Surge resistance
- 1.5 kV
- Shield
- No
- Cable length
- 5 m
- Cable characteristic
- Suitable for robot applications
- Connector cable test conditions
- Test conditions on request
- Bending radius, xed cable installation
- 30 mm
- Bending radius, exible cable installation
- 75 mm
- Cable diameter
- 7.5 mm
- Cable diameter tolerance
- ± 0.2 mm
- Cable design
- 4 x 0.75 mm²
- Nominal conductor cross section
- 0.75 mm² | AWG19
