Festo
8140938
Connecting cable NEBM-T12W4-R-3-LE4
This Festo industrial component, part number 8140938, is built on the EN 61076-2-111 norm and weighs 256 g with an integrated label holder. The field device side features an angled M12x1 T-coded socket with four pins and a screw-type lock, connecting to an open-end control side with four wires via a non-shielded design. Operating across a DC voltage range of 0 V to 60 V, the unit delivers a 5 A current rating at 40° C and a 1.5 kV surge resistance. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8140938
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8140938.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- EN 61076-2-111
- Cable designation
- With label holder
- Product weight
- 256 g
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Round
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, cable outlet
- Angled
- Electrical connection 1, connection technology

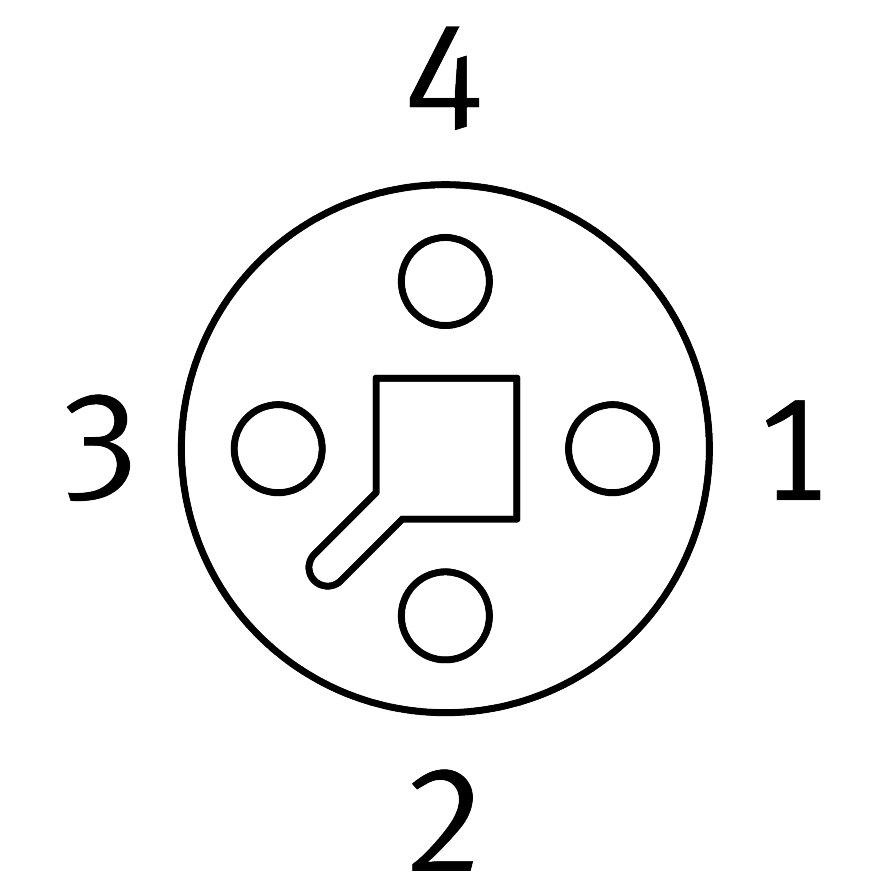

- M12x1, T-coded as per EN 61076-2-111
- Electrical connection 1, number of pins/wires
- 4
- Electrical connection 1, occupied pins/wires
- 4
- Electrical connection 1, type of mounting
- Screw-type lock
- Electrical connection 2, function
- Control side
- Electrical connection 2, connection type
- Cable
- Electrical connection 2, connection technology
- Open end
- Electrical connection 2, number of pins/wires
- 4
- Electrical connection 2, occupied pins/wires
- 4
- DC operating voltage range
- 0 V...60 V
- Current rating at 40° C
- 5 A
- Surge resistance
- 1.5 kV
- Shield
- No
- Cable length
- 3 m
- Cable characteristic
- Suitable for robot applications
- Connector cable test conditions
- Test conditions on request
- Bending radius, xed cable installation
- 30 mm
- Bending radius, exible cable installation
- 75 mm
- Cable diameter
- 7.5 mm
- Cable diameter tolerance
- ± 0.2 mm
- Cable design
- 4 x 0.75 mm²
- Nominal conductor cross section
- 0.75 mm² | AWG19
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8140938. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
