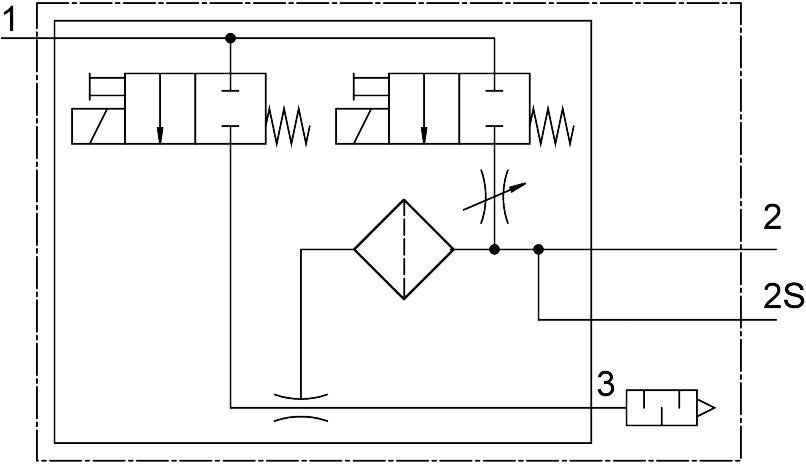

Reference imageConfirm configuration by manufacturer part number.
Festo
8141094
Vacuum generator OVEL-5-H-10-P-VQ4-UC-C-A-H3
The Festo part number 8141094 is a T-shaped industrial component featuring a 0.45 mm nominal width Laval nozzle, a 10 mm width dimension, a closed muffler construction type, and any mounting position with a non-detenting manual override. Integrated functions include an electric ejector pulse, a flow control valve, an electric on-off valve, a filter, and a closed muffler, operating within a 21.6 V to 26.4 V DC range and a 100% duty cycle with 24 V DC 1.0 W coil characteristics. This unit delivers high vacuum and standard ejector characteristics with a 4 l/min maximum suction rate at atmosphere, 89% maximum vacuum, and an operating pressure range of 0.2 MPa to 0.7 MPa. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8141094
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8141094.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width of Laval nozzle
- 0.45 mm
- Width dimension
- 10 mm
- Muffler construction type
- Closed
- Mounting position
- Any
- Ejector characteristics
- High vacuum | Standard
- Grade of ltration
- 40 µm
- Manual override
- Non-detenting
- Integrated function
- Ejector pulse, electric | Flow control valve | Electric on-off valve | Filter | Muffler, closed
- Structural design
- T-shape
- Valve function
- Closed
- Operating pressure for max. suction rate
- 0.3 MPa | 3 bar | 43.5 psi
- Operating pressure
- 0.2 MPa...0.7 MPa | 2 bar...7 bar | 29 psi...101.5 psi
- Operating pressure for max. vacuum
- 0.44 MPa | 4.4 bar | 63.8 psi
- Max. vacuum
- 89 %
- Nominal operating pressure
- 0.4 MPa | 4 bar | 58 psi
- Max. suction rate with respect to atmosphere
- 4 l/min
- Air supply time at nominal operating pressure with ejector pulse
- 2 s
- DC operating voltage range
- 21.6 V...26.4 V
- Duty cycle
- 100%
- Coil characteristics
- 24 V DC: 1.0 W
- Certication
- c UL us - Listed (OL)
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
