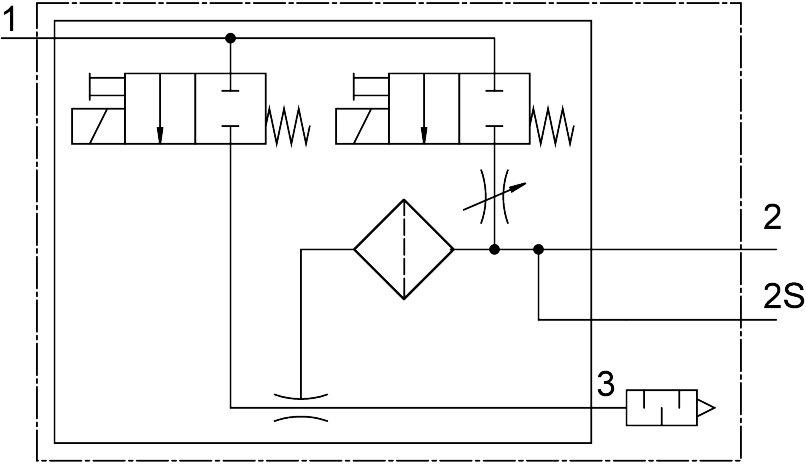

Reference imageConfirm configuration by manufacturer part number.
Festo
8141097
Vacuum generator OVEL-10-H-15-P-VQ6-UC-C-A-H3
The Festo part number 8141097 is an industrial component featuring a T-shape structural design with a 0.95 mm nominal width Laval nozzle, a 15 mm width dimension, and a closed muffler construction type supporting any mounting position. This unit integrates an electric ejector pulse, a flow control valve, an electric on-off valve, a filter, and a closed muffler, along with a non-detenting manual override and high vacuum standard ejector characteristics delivering a maximum vacuum of 92% and a maximum suction rate of 21 l/min at an operating pressure of 0.4 MPa (4 bar, 58 psi). It operates within a 0.2 MPa to 0.7 MPa pressure range, a 21.6 V to 26.4 V DC voltage range, and a 100% duty cycle with 24 V DC 1.0 W coil characteristics, plus a 40 µm grade of filtration and a 1 s air supply time at nominal operating pressure with an ejector pulse. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8141097
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8141097.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width of Laval nozzle
- 0.95 mm
- Width dimension
- 15 mm
- Muffler construction type
- Closed
- Mounting position
- Any
- Ejector characteristics
- High vacuum | Standard
- Grade of ltration
- 40 µm
- Manual override
- Non-detenting
- Integrated function
- Ejector pulse, electric | Flow control valve | Electric on-off valve | Filter | Muffler, closed
- Structural design
- T-shape
- Valve function
- Closed
- Operating pressure for max. suction rate
- 0.4 MPa | 4 bar | 58 psi
- Operating pressure
- 0.2 MPa...0.7 MPa | 2 bar...7 bar | 29 psi...101.5 psi
- Operating pressure for max. vacuum
- 0.41 MPa | 4.1 bar | 59.45 psi
- Max. vacuum
- 92 %
- Nominal operating pressure
- 0.4 MPa | 4 bar | 58 psi
- Max. suction rate with respect to atmosphere
- 21 l/min
- Air supply time at nominal operating pressure with ejector pulse
- 1 s
- DC operating voltage range
- 21.6 V...26.4 V
- Duty cycle
- 100%
- Coil characteristics
- 24 V DC: 1.0 W
- Certication
- c UL us - Listed (OL)
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8141097. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
