Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

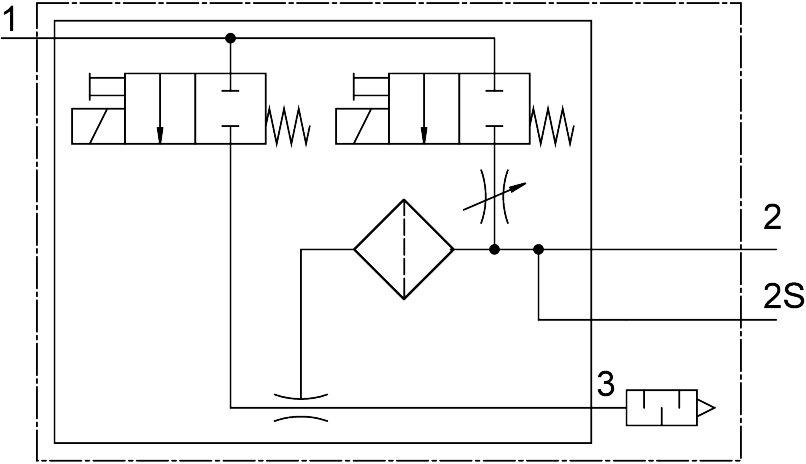

Reference imageConfirm configuration by manufacturer part number.
Festo
8141100
Vacuum generator OVEL-7-H-15-PQ-VQ4-UC-C-A-H3
This Festo industrial component, part number 8141100, features a T-shaped structural design with a 15 mm width dimension and a 0.7 mm Laval nozzle nominal width, delivering high vacuum and standard ejector characteristics with a maximum vacuum of 92 percent and a maximum suction rate of 17 l/min. The unit integrates an electric ejector pulse, a flow control valve, an electric on-off valve, a 40 µm grade filter, and a closed muller, operating within a pressure range of 0.2 MPa to 0.7 MPa and a 21.6 V to 26.4 V DC operating voltage range at a 100 percent duty cycle. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8141100
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8141100.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width of Laval nozzle
- 0.7 mm
- Width dimension
- 15 mm
- Muffler construction type
- Closed
- Mounting position
- Any
- Ejector characteristics
- High vacuum | Standard
- Grade of ltration
- 40 µm
- Manual override
- Non-detenting
- Integrated function
- Ejector pulse, electric | Flow control valve | Electric on-off valve | Filter | Muffler, closed
- Structural design
- T-shape
- Valve function
- Closed
- Operating pressure for max. suction rate
- 0.4 MPa | 4 bar | 58 psi
- Operating pressure
- 0.2 MPa...0.7 MPa | 2 bar...7 bar | 29 psi...101.5 psi
- Operating pressure for max. vacuum
- 0.48 MPa | 4.8 bar | 69.6 psi
- Max. vacuum
- 92 %
- Nominal operating pressure
- 0.4 MPa | 4 bar | 58 psi
- Max. suction rate with respect to atmosphere
- 17 l/min
- Air supply time at nominal operating pressure with ejector pulse
- 1.2 s
- DC operating voltage range
- 21.6 V...26.4 V
- Duty cycle
- 100%
- Coil characteristics
- 24 V DC: 1.0 W
- Certication
- c UL us - Listed (OL)
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8141100. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
