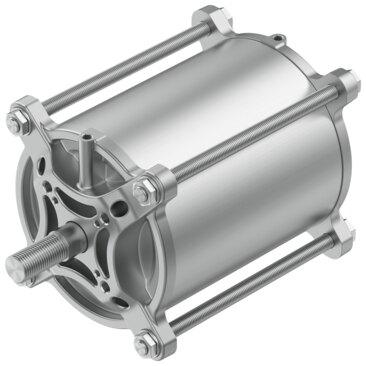

Reference imageConfirm configuration by manufacturer part number.
Festo
8141420
Linear actuator DFPC-250- -
The Festo industrial component, part number 8141420, is a double-acting piston actuator featuring a 250 mm piston diameter, an adjustable stroke ranging from 10 mm to 1600 mm, and an ISO 5210 standard valve connection with F10 and F14 flange hole patterns. Designed with a structural configuration comprising a piston, piston rod, tie rod 1, and cylinder barrel, it operates within a pressure range of 0.25 MPa to 0.8 MPa (2.5 bar to 8 bar / 36.25 psi to 116 psi) at a nominal operating pressure of 0.6 MPa (6 bar). This unit includes elastic cushioning rings or pads at both ends, accommodates any mounting position, and provides position sensing via a proximity switch. Certified with ATEX and UKEX markings for hazardous locations, it supports Zone 1, Zone 2, Zone 21, and Zone 22 environments with II 2G gas and II 2D dust ATEX categories, EPL Db and EPL Gb certifications, and Ex h IIC T4 Gb gas ignition protection. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8141420
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8141420.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size of valve actuator
- 250
- Flange hole pattern
- F10 | F14
- Stroke
- 10 mm...1600 mm
- Piston diameter
- 250 mm
- Standard connection for valve
- ISO 5210
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Piston | Piston rod | Tie rod 1 | Cylinder barrel
- Position sensing
- Via proximity switch
- Variants
- EX protection approval (ATEX)
- Operating pressure
- 0.25 MPa...0.8 MPa | 2.5 bar...8 bar | 36.25 psi...116 psi
- Nominal operating pressure
- 0.6 MPa | 6 bar
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX)
- UKCA marking (see declaration of conformity)
- acc. to UK EX instructions
- Explosion protection certication outside the EU
- EPL Db (GB) | EPL Gb (GB)
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 1 (UKEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 21 (UKEX) | Zone 22 (ATEX)
- ATEX category gas
- II 2G
- ATEX category for dust
- II 2D
- Type of ignition protection for gas
- Ex h IIC T4 Gb
- Type of (ignition) protection for dust
- Ex h IIIC T120°C Db
- Explosive ambient temperature
- -20°C <= Ta <= +80°C
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8141420. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
