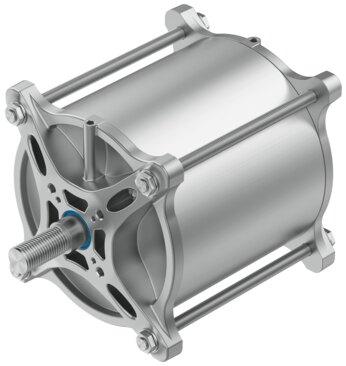

Reference imageConfirm configuration by manufacturer part number.
Festo
8141421
Linear actuator DFPC-320- -
The Festo part number 8141421 is a double-acting industrial component featuring a 320 mm piston diameter, an actuator size of 320, and a stroke length ranging from 10 mm to 1600 mm with an ISO 5210 standard valve connection and F10 or F14 flange hole patterns. This unit incorporates elastic cushioning rings or pads at both ends, operates within a pressure range of 0.25 MPa to 0.8 MPa (2.5 bar to 8 bar or 36.25 psi to 116 psi) with a nominal operating pressure of 0.6 MPa (6 bar), and utilizes a structural design comprising a piston, piston rod, tie rod 1, and cylinder barrel with position sensing via proximity switch. Certified for explosive environments in ATEX Zone 1, Zone 2, Zone 21, and Zone 22 as well as UKEX Zone 1 and Zone 21, the assembly carries ATEX category gas II 2G ratings with CE and UKCA markings alongside EPL Gb (GB) and EPL Db (GB) explosion protection certifications outside the EU. Submit the exact part number, quantity, and application requirements to receive a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8141421
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8141421.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size of valve actuator
- 320
- Flange hole pattern
- F10 | F14
- Stroke
- 10 mm...1600 mm
- Piston diameter
- 320 mm
- Standard connection for valve
- ISO 5210
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Piston | Piston rod | Tie rod 1 | Cylinder barrel
- Position sensing
- Via proximity switch
- Variants
- EX protection approval (ATEX) | Extended external thread piston rod | Special thread on piston rod | Piston rod with external thread shortened at one end | Extended piston rod | Spacer bolt on the bearing cap end
- Operating pressure
- 0.25 MPa...0.8 MPa | 2.5 bar...8 bar | 36.25 psi...116 psi
- Nominal operating pressure
- 0.6 MPa | 6 bar
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX)
- UKCA marking (see declaration of conformity)
- acc. to UK EX instructions
- Explosion protection certication outside the EU
- EPL Db (GB) | EPL Gb (GB)
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 1 (UKEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 21 (UKEX) | Zone 22 (ATEX)
- ATEX category gas
- II 2G
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8141421. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
