Festo
8141517

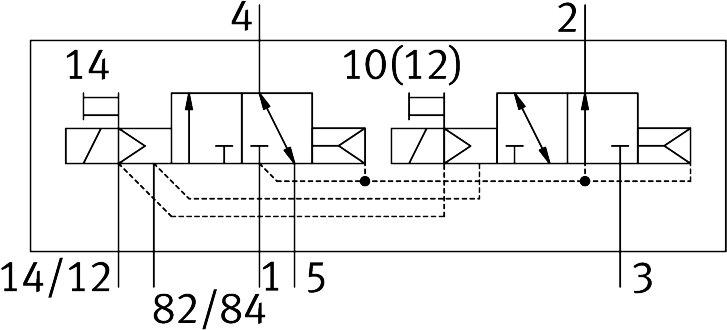

Solenoid valve VUVG-B10-T32H-AZT-F-1T1L-F1A
The Festo 8141517 is an electrical industrial component featuring a 2x3/2, open/closed, monostable piston gate valve design with a 10 mm valve size, a normal nominal flow rate of 150 l/min, and flanged pneumatic working ports. Operating at 24V DC across an operating pressure range of 0.15 MPa to 1 MPa (1.5 bar to 10 bar), this piloted unit utilizes external pilot air supply, a pneumatic spring reset, soft sealing, adjustable exhaust air function, positive overlap, and features a signal status display LED with both detenting and non-detenting manual override. Certified as c UL us - recognized (OL) with an IP40 degree of protection, it supports any mounting position and a pilot pressure of 0.15 MPa to 0.8 MPa. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8141517
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8141517.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2x3/2, open/closed, monostable
- Actuation type
- Electrical
- Valve size
- 10 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 150 l/min
- Pneumatic working port
- Flange
- Operating voltage
- 24V DC
- Operating pressure
- 0.15 MPa...1 MPa | 1.5 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Pneumatic spring
- Certication
- c UL us - recognized (OL)
- Degree of protection
- IP40
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- External
- Lap
- Positive overlap
- Signal status display
- LED
- Pilot pressure MPa
- 0.15 MPa...0.8 MPa
- Pilot pressure
- 1.5 bar...8 bar
- Max. switching frequency
- 3 Hz
- Switching time off
- 20 ms
- On switching time
- 8 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 1600 µs
- Max. negative test pulse on 1 signal
- 3000 µs
- Coil characteristics
- 22 V DC: 1.0 W
- Permissible voltage uctuations
- +/- 10%
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8141517. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
