8141655

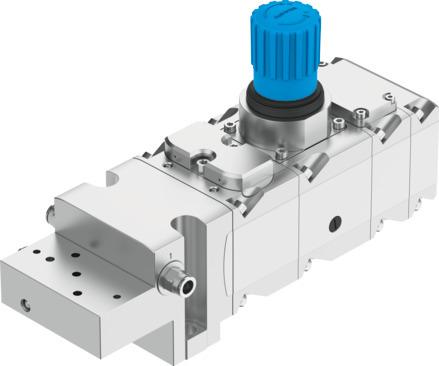

Name: Festo 8141655 Valve manifold VTOP-
Brand: Festo

Valve manifold VTOP-

The Festo 8141655 is an industrial component designed for an operating pressure range of 0 MPa to 0.9 MPa (0 bar to 9 bar, 0 psi to 130.5 psi) with a size of 100 mm and any mounting position. Constructed with smooth-anodized wrought aluminum alloy housing and cover with high-alloy stainless steel screws, it features a corrosion resistance class of CRC 3 and ATEX explosion prevention for Zones 1, 2, 21, and 22. Operating with compressed air as per ISO 8573-1:2010 [-:7:-] or inert gases without oil lubrication, this part includes various configuration variants such as safety function manifold blocks, filter regulators, and volume boosters. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8141655
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8141655.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Operating pressure: 0 MPa...0.9 MPa | 0 bar...9 bar | 0 psi...130.5 psi
Size: 100 mm
Variants: Manifold block for safety functions, HFT0 prepared for exhaust, VDI/VDE | 3845 | Manifold block for safety functions, HFT0 prepared for exhaust, VDI/VDE | 3847 | Manifold block for safety functions, HFT1 prepared for exhaust, VDI/VDE | 3847 | End plate, double-acting, active direction, can be switched | Filter regulator, pressure range 0.5 ... 12 bar, grade of ltration 40 µm | Filter regulator, pressure range 0.5 ... 12 bar, grade of ltration 5 µm | Module for reaching a specic end position in case of a pressure failure | Volume booster, double-acting | Volume booster, single-acting
Explosion prevention and protection: Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
Mounting position: Any
Operating medium: Compressed air as per ISO 8573-1:2010 [-:7:-] | Inert gases
Information on operating and pilot media: Operation with oil lubrication not possible
Vibration resistance: Transport application test with severity level 1 as per FN 942017-4 and | EN 60068-2-6
Shock resistance: Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27
Note on shock resistance: With more than 3 modules, additional mounting requirements or | reduced values are necessary | Valid for max. 3 modules + end plate
Corrosion resistance class (CRC): 3 - High corrosion stress
LABS (PWIS) conformity: VDMA24364 Zone III
Type of mounting: With accessories
Pneumatic connection: Sub-base design, airing
Housing material: Smooth-anodized wrought aluminum alloy (20 µm)
Cover material: Smooth-anodized wrought aluminum alloy (20 µm)
Material of screws: high-alloy stainless steel

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8141655. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
