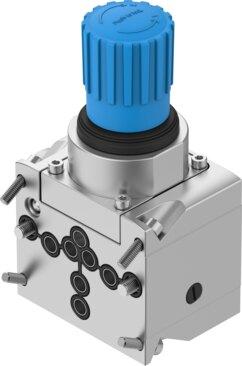

Name: Festo 8141656 Filter regulator PCRI-100-F90-12-C-T3
Brand: Festo

Filter regulator PCRI-100-F90-12-C-T3

The Festo part number 8141656 is a sub-base valve and directly controlled diaphragm regulator featuring a rotary knob actuator lock with detent and a 5 µm filtration grade. It delivers a normal nominal flow rate of 1400 l/min across an operating pressure of 1 bar to 9 bar, utilizing compressed air or inert gases within a medium and ambient temperature range of -40 °C to 80 °C. Rated for high corrosion stress with a CRC of 3 and certified for ATEX Zones 1, 2, 21, and 22, this component weighs 1950 g and is configured for constant output pressure with primary pressure compensation and secondary exhausting. Submit the exact part number, quantity, and application requirements to receive a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8141656
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8141656.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Actuator lock: Rotary knob with detent
Mounting position: Any
Grade of ltration: 5 µm
Condensate drain: None
Structural design: Sub-base valve | Directly controlled diaphragm regulator
Controller function: Constant output pressure | With primary pressure compensation | With secondary exhausting
Pressure gauge: Set up for G1/4
Operating pressure: 0.1 MPa...0.9 MPa | 1 bar...9 bar
Pressure regulation range: 0.5 bar...8 bar
Max. pressure hysteresis: 0.025 MPa | 0.25 bar | 3.625 psi
Normal nominal ow rate (normalized to DIN 1343): 1400 l/min
Explosion prevention and protection: Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
Operating medium: Compressed air as per ISO 8573-1:2010 [-:7:-] | Inert gases
Information on operating and pilot media: Operation with oil lubrication not possible
Corrosion resistance class (CRC): 3 - High corrosion stress
LABS (PWIS) conformity: VDMA24364 Zone III
Air quality class at the output: Compressed air as per ISO 8573-1:2010 [6:7:-] | Inert gases
Temperature of medium: -40 °C...80 °C
Ambient temperature: -40 °C...80 °C
Product weight: 1950 g
Pneumatic connection: Sub-base design, airing
Note on materials: RoHS compliant
Cover material: Smooth-anodized wrought aluminum alloy (20 µm)
Seals material: EPDM

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8141656. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
