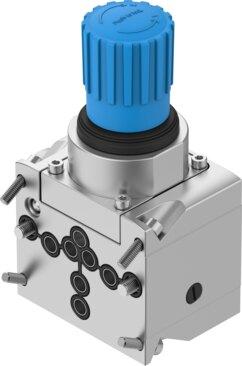

Name: Festo 8141657 Filter regulator PCRI-100-F90-12-E-T3
Brand: Festo

Filter regulator PCRI-100-F90-12-E-T3

The Festo 8141657 is a sub-base valve featuring a directly controlled diaphragm regulator with a rotary knob with detent, offering a normal nominal flow rate of 1400 l/min and a pressure regulation range of 0.5 bar to 8 bar. Designed with primary pressure compensation and secondary exhausting, this component operates within a temperature range of -40 °C to 80 °C and holds ATEX certification for zones 1, 2, 21, and 22. It achieves a corrosion resistance class of 3 for high corrosion stress and has a product weight of 1950 g. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8141657
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8141657.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Actuator lock: Rotary knob with detent
Mounting position: Any
Grade of ltration: 40 µm
Condensate drain: None
Structural design: Sub-base valve | Directly controlled diaphragm regulator
Controller function: Constant output pressure | With primary pressure compensation | With secondary exhausting
Pressure gauge: Set up for G1/4
Operating pressure: 0.1 MPa...0.9 MPa | 1 bar...9 bar
Pressure regulation range: 0.5 bar...8 bar
Max. pressure hysteresis: 0.025 MPa | 0.25 bar | 3.625 psi
Normal nominal ow rate (normalized to DIN 1343): 1400 l/min
Explosion prevention and protection: Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
Operating medium: Compressed air as per ISO 8573-1:2010 [-:7:-] | Inert gases
Information on operating and pilot media: Operation with oil lubrication not possible
Corrosion resistance class (CRC): 3 - High corrosion stress
LABS (PWIS) conformity: VDMA24364 Zone III
Air quality class at the output: Compressed air as per ISO 8573-1:2010 [7:7:-] | Inert gases
Temperature of medium: -40 °C...80 °C
Ambient temperature: -40 °C...80 °C
Product weight: 1950 g
Pneumatic connection: Sub-base design, airing
Note on materials: RoHS compliant
Cover material: Smooth-anodized wrought aluminum alloy (20 µm)
Seals material: EPDM
