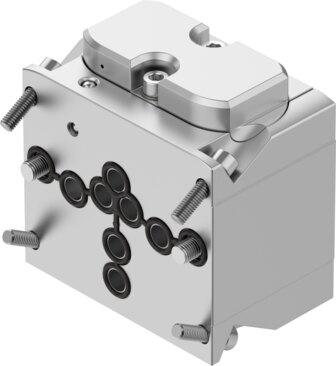

Reference imageConfirm configuration by manufacturer part number.
Festo
8141658
Pneumatic valve VOGM-FD100-M33E-M-F90
Engineered by Festo, part number 8141658 is a pneumatic proportional 3/3-way valve utilizing a sub-base, diaphragm, and pilot-controlled piston poppet structural design with a soft sealing principle. Operating within a pressure range of 0.14 MPa to 0.8 MPa (1.4 bar to 8 bar / 20.3 psi to 116 psi) and a temperature span of -40 °C to 80 °C, this single-acting component delivers a normal nominal flow rate of 1240 l/min with a mechanical spring reset. The smooth-anodized wrought aluminum alloy housing features a 20 µm coating, supports any mounting position with accessories, and accommodates compressed air as per ISO 8573-1:2010 [7:7:-] or inert gases without oil lubrication. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8141658
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8141658.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- Sub-base valve | Diaphragm valve | Pilot-controlled piston poppet valve
- Actuation type
- Pneumatic
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- With accessories
- Valve function
- Proportional 3/3-way valve
- Mode of operation
- Single-acting
- Operating pressure
- 0.14 MPa...0.8 MPa | 1.4 bar...8 bar | 20.3 psi...116 psi
- Reset method
- Mechanical spring
- Pneumatic connection
- Sub-base design, airing
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:7:-] | Inert gases
- Information on operating and pilot media
- Operation with oil lubrication not possible
- Temperature of medium
- -40 °C...80 °C
- Ambient temperature
- -40 °C...80 °C
- Normal nominal ow rate (normalized to DIN 1343)
- 1240 l/min
- C value
- 5.58 l/sbar
- b-value
- 0.214
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Housing material
- Smooth-anodized wrought aluminum alloy (20 µm)
- Cover material
- Smooth-anodized wrought aluminum alloy (20 µm)
- Seals material
- EPDM | NBR
- Material of screws
- high-alloy stainless steel
- Material of spring
- Spring steel
- Product weight
- 1560 g
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8141658. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
