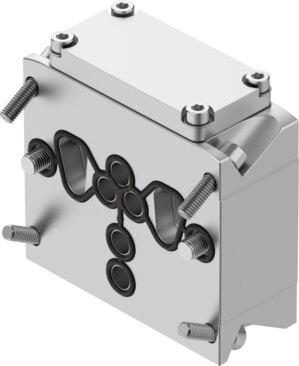

Reference imageConfirm configuration by manufacturer part number.
Festo
8141660
Pneumatic valve VOGI-F100FS-T32H-M-F90
The Festo part number 8141660 is a pilot-controlled piston poppet industrial component featuring a sub-base valve structural design with a soft sealing principle and a 4/2-way monostable failsafe valve function. This pneumatic, double-acting device operates within a pressure range of 0.33 MPa to 0.8 MPa (3.3 bar to 8 bar, 47.85 psi to 116 psi) utilizing a mechanical spring reset method and a normal nominal flow rate of 1093 l/min for compressed air conforming to ISO 8573-1:2010 [7:7:-] or inert gases. Constructed with smooth-anodized wrought aluminum alloy housing and cover materials measuring 20 µm, the unit supports any mounting position with accessories, a medium and ambient temperature range of -20 °C to 80 °C, and is RoHS compliant with VDMA24364 Zone III LABS conformity. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8141660
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8141660.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- Sub-base valve | Pilot-controlled piston poppet valve
- Actuation type
- Pneumatic
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- With accessories
- Valve function
- 4/2-way, monostable | Failsafe
- Mode of operation
- Double-acting
- Operating pressure
- 0.33 MPa...0.8 MPa | 3.3 bar...8 bar | 47.85 psi...116 psi
- Reset method
- Mechanical spring
- Pneumatic connection
- Sub-base design, airing
- Pneumatic connection 1
- G1/2
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:7:-] | Inert gases
- Information on operating and pilot media
- Operation with oil lubrication not possible
- Temperature of medium
- -20 °C...80 °C
- Ambient temperature
- -20 °C...80 °C
- Normal nominal ow rate (normalized to DIN 1343)
- 1093 l/min
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Housing material
- Smooth-anodized wrought aluminum alloy (20 µm)
- Cover material
- Smooth-anodized wrought aluminum alloy (20 µm)
- Seals material
- EPDM | NBR
- Material of screws
- high-alloy stainless steel
- Material of spring
- Spring steel
- Product weight
- 880 g
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8141660. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
