Festo
8141661

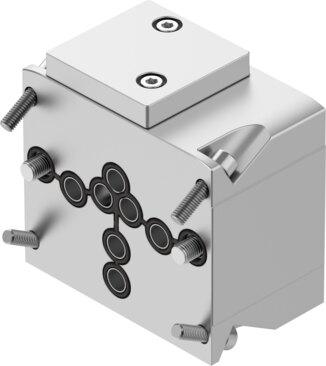

Sub-base VABP-C13-100HFT0-F90-VDE1E
The Festo 8141661 is an industrial component featuring a 1oo1 channel structure with any mounting position and a VDI/VDE 3847-1 conforming valve connection. Constructed with a smooth-anodized wrought aluminum alloy housing and cover, EPDM and NBR seals, and high-alloy stainless steel screws, it offers CRC 3 high corrosion stress resistance and operates within a temperature range of -40 °C to 80 °C. This unit operates on compressed air meeting ISO 8573-1:2010 [7:7:-] or inert gases at pressures from 0 MPa to 0.8 MPa, provides ATEX explosion prevention for Zones 1, 2, 21, and 22, and weighs 1300 g with sub-base airing pneumatic connections. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8141661
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8141661.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Mounting position
- Any
- Structural design
- 1oo1 channel structure
- Valve connection conforms to standard
- VDI/VDE 3847-1
- Operating pressure
- 0 MPa...0.8 MPa | 0 bar...8 bar
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:7:-] | Inert gases
- Information on operating and pilot media
- Operation with oil lubrication not possible
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Temperature of medium
- -40 °C...80 °C
- Ambient temperature
- -40 °C...80 °C
- Product weight
- 1300 g
- Type of mounting
- With accessories
- Pneumatic connection
- Sub-base design, airing
- Note on materials
- RoHS compliant
- Cover material
- Smooth-anodized wrought aluminum alloy (20 µm)
- Seals material
- EPDM | NBR
- Housing material
- Smooth-anodized wrought aluminum alloy (20 µm)
- Material of screws
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8141661. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
