Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

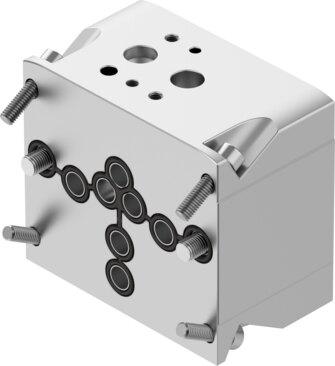

Reference imageConfirm configuration by manufacturer part number.
Festo
8141662
Sub-base VABP-C13-100HFT1-F90-VDE1E
Manufactured by Festo with part number 8141662, this industrial component features a 1oo2 channel structure and a valve connection conforming to VDI/VDE 3847-1 standards. It operates with compressed air as per ISO 8573-1:2010 [7:7:-] or inert gases at a pressure range of 0 MPa to 0.8 MPa (0 bar to 8 bar), supporting any mounting position with sub-base airing pneumatic connections. Constructed with a smooth-anodized wrought aluminum alloy housing and cover, EPDM and NBR seals, and high-alloy stainless steel screws, the unit achieves a corrosion resistance class of CRC 3 for high corrosion stress and holds ATEX certification for zones 1, 2, 21, and 22. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8141662
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8141662.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Mounting position
- Any
- Structural design
- 1oo2 channel structure
- Valve connection conforms to standard
- VDI/VDE 3847-1
- Operating pressure
- 0 MPa...0.8 MPa | 0 bar...8 bar
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:7:-] | Inert gases
- Information on operating and pilot media
- Operation with oil lubrication not possible
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Temperature of medium
- -40 °C...80 °C
- Ambient temperature
- -40 °C...80 °C
- Product weight
- 1365 g
- Type of mounting
- With accessories
- Pneumatic connection
- Sub-base design, airing
- Note on materials
- RoHS compliant
- Cover material
- Smooth-anodized wrought aluminum alloy (20 µm)
- Seals material
- EPDM | NBR
- Housing material
- Smooth-anodized wrought aluminum alloy (20 µm)
- Material of screws
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8141662. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
