Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
8141663

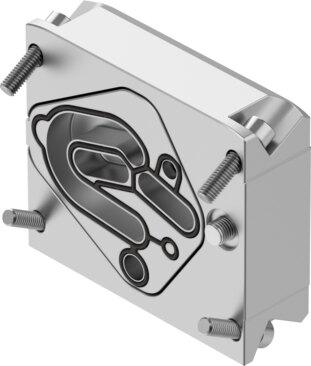

End plate VABE-C13-100-F90-DU
The Festo 8141663 industrial component features a structural design without throttling and a switchable flow direction, supporting an operating pressure range of 0 MPa to 0.8 MPa and 0 bar to 8 bar with compressed air or inert gases in any mounting position. Constructed with smooth-anodized wrought aluminum alloy covers and housing, high-alloy stainless steel screws, and EPDM and NBR seals, this 645 g part provides a corrosion resistance class of 3 for high corrosion stress and VDMA24364 Zone III LABS conformity while operating within a medium and ambient temperature range of -40 °C to 80 °C across ATEX Zones 1, 2, 21, and 22. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8141663
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8141663.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Mounting position
- Any
- Structural design
- Without throttling | Switchable ow direction
- Operating pressure
- 0 MPa...0.8 MPa | 0 bar...8 bar
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:7:-] | Inert gases
- Information on operating and pilot media
- Operation with oil lubrication not possible
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Temperature of medium
- -40 °C...80 °C
- Ambient temperature
- -40 °C...80 °C
- Product weight
- 645 g
- Type of mounting
- With accessories
- Pneumatic connection
- Sub-base design, airing
- Note on materials
- RoHS compliant
- Cover material
- Smooth-anodized wrought aluminum alloy (20 µm)
- Seals material
- EPDM | NBR
- Housing material
- Smooth-anodized wrought aluminum alloy (20 µm)
- Material of screws
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8141663. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
