Festo
8141729

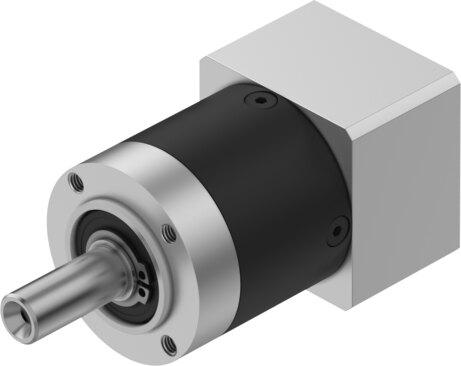

Gear unit EMGA-40-P-G8-EAS-40
The Festo 8141729 is an industrial component featuring a 40 mm gearbox flange size, a 40 mm motor flange size, and an 8:1 gear ratio planetary gear set that delivers a continuous output torque of 6 Nm and a maximum output torque of 10 Nm. Built with a product weight of 350 g, a mass moment of inertia of 0.015 kgcm², and an IP54 degree of protection, this unit operates within a temperature range of -25 °C to 90 °C while accommodating a maximum actuator speed of 18000 rpm and 200 N of both permissible axial and radial shaft load. It achieves a torsional backlash of 0.25 deg, a torsional rigidity of 0.85 Nm/arcmin, and a maximum efficiency of 96% while maintaining VDMA24364-B2-L LABS conformity and RoHS material compliance. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8141729
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8141729.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Gearbox ange size
- 40 mm
- Motor ange size
- 40 mm
- Torsional backlash
- 0.25 deg
- Gearbox type
- Planetary gear set
- Gear ratio
- 8:1
- Max. actuator speed
- 18000 rpm
- Gearbox operating temperature
- -25 °C...90 °C
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Degree of protection
- IP54
- Continuous output torque
- 6 Nm
- Mass moment of inertia, gearbox
- 0.015 kgcm²
- Max. output torque
- 10 Nm
- Max. efficiency
- 96 %
- Torsional rigidity
- 0.85 Nm/arcmin
- Product weight
- 350 g
- Permissible axial shaft load
- 200 N
- Permissible radial shaft load
- 200 N
- Gearbox interface, output shaft
- 40G
- Gearbox interface, actuator
- 40P
- Note on materials
- RoHS compliant
