Festo
8141736

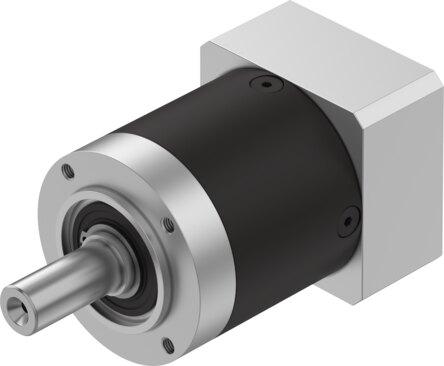

Gear unit EMGA-60-P-G12-EAS-60
The Festo 8141736 is an industrial planetary gear set featuring a 60 mm gearbox and motor flange size with a 12:1 gear ratio. It delivers a continuous output torque of 44 Nm, a maximum output torque of 70 Nm, and a maximum actuator speed of 13,000 rpm while maintaining a torsional backlash of 0.2 degrees and maximum efficiency of 96 percent. Built with an IP54 degree of protection and VDMA24364-B2-L LABS conformity, the 1100 g RoHS-compliant component operates within a temperature range of -25 °C to 90 °C and supports a permissible axial shaft load of 500 N and radial shaft load of 400 N. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8141736
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8141736.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Gearbox ange size
- 60 mm
- Motor ange size
- 60 mm
- Torsional backlash
- 0.2 deg
- Gearbox type
- Planetary gear set
- Gear ratio
- 12:1
- Max. actuator speed
- 13000 rpm
- Gearbox operating temperature
- -25 °C...90 °C
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Degree of protection
- IP54
- Continuous output torque
- 44 Nm
- Mass moment of inertia, gearbox
- 0.138 kgcm²
- Max. output torque
- 70 Nm
- Max. efficiency
- 96 %
- Torsional rigidity
- 2.8 Nm/arcmin
- Product weight
- 1100 g
- Permissible axial shaft load
- 500 N
- Permissible radial shaft load
- 400 N
- Gearbox interface, output shaft
- 60H
- Gearbox interface, actuator
- 60P
- Note on materials
- RoHS compliant
