Festo
8141737

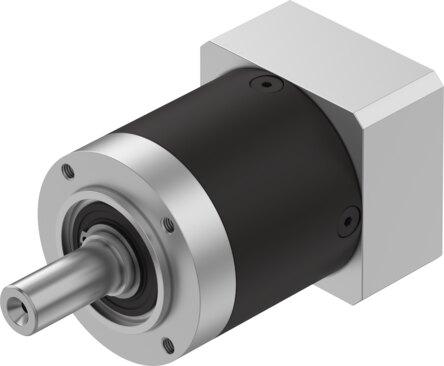

Gear unit EMGA-60-P-G20-EAS-60
The Festo 8141737 is a 1100 g industrial planetary gear set featuring a 20:1 gear ratio, a 60 mm gearbox flange size, and a 60 mm motor flange size. This component delivers a continuous output torque of 44 Nm, a maximum output torque of 70 Nm, a maximum efficiency of 96 percent, and a torsional backlash of 0.2 degrees while operating within a temperature range of -25 °C to 90 °C. Rated at IP54 protection and conforming to VDMA24364-B2-L LABS standards, it supports a maximum actuator speed of 13000 rpm, permissible axial shaft loads of 500 N, and permissible radial shaft loads of 400 N. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8141737
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8141737.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Gearbox ange size
- 60 mm
- Motor ange size
- 60 mm
- Torsional backlash
- 0.2 deg
- Gearbox type
- Planetary gear set
- Gear ratio
- 20:1
- Max. actuator speed
- 13000 rpm
- Gearbox operating temperature
- -25 °C...90 °C
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Degree of protection
- IP54
- Continuous output torque
- 44 Nm
- Mass moment of inertia, gearbox
- 0.096 kgcm²
- Max. output torque
- 70 Nm
- Max. efficiency
- 96 %
- Torsional rigidity
- 2.8 Nm/arcmin
- Product weight
- 1100 g
- Permissible axial shaft load
- 500 N
- Permissible radial shaft load
- 400 N
- Gearbox interface, output shaft
- 60H
- Gearbox interface, actuator
- 60P
- Note on materials
- RoHS compliant
