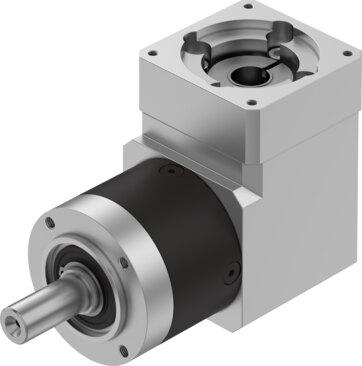

Reference imageConfirm configuration by manufacturer part number.
Festo
8141738
Gear unit EMGA-60-A-G8-60P
Engineered by Festo, part number 8141738 is an industrial miter gear unit featuring a 60 mm gearbox and motor flange size with an 8:1 gear ratio. This component delivers a continuous output torque of 18 Nm, a maximum output torque of 29 Nm, and supports a maximum actuator speed of 13000 rpm while maintaining a torsional backlash of 0.27 deg. Built for an operating temperature range of -25 °C to 90 °C, the 1700 g assembly provides IP54 protection, VDMA24364-B2-L LABS conformity, and RoHS compliance. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8141738
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8141738.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Gearbox ange size
- 60 mm
- Motor ange size
- 60 mm
- Torsional backlash
- 0.27 deg
- Gearbox type
- Miter gears
- Gear ratio
- 8:1
- Max. actuator speed
- 13000 rpm
- Gearbox operating temperature
- -25 °C...90 °C
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Degree of protection
- IP54
- Continuous output torque
- 18 Nm
- Mass moment of inertia, gearbox
- 0.243 kgcm²
- Max. output torque
- 29 Nm
- Max. efficiency
- 93 %
- Torsional rigidity
- 1.6 Nm/arcmin
- Product weight
- 1700 g
- Permissible axial shaft load
- 500 N
- Permissible radial shaft load
- 400 N
- Gearbox interface, output shaft
- 60G
- Gearbox interface, actuator
- 60P
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8141738. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
