Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
8141739

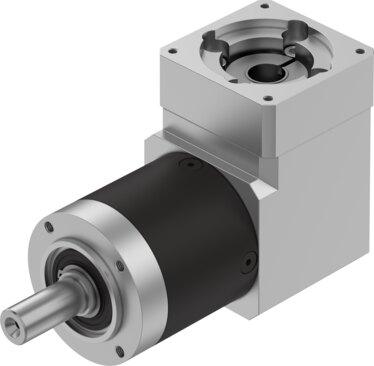

Gear unit EMGA-60-A-G12-60P
The Festo 1900 g industrial component features a 60 mm gearbox and motor flange size with a 12:1 gear ratio utilizing miter gears. It delivers a continuous output torque of 44 Nm, a max output torque of 70 Nm, and a max actuator speed of 13000 rpm while maintaining an IP54 degree of protection and VDMA24364-B2-L LABS conformity. Operating within a temperature range of -25 °C to 90 °C, this RoHS-compliant unit achieves a max efficiency of 94% with a torsional backlash of 0.3 deg, 2 Nm/arcmin torsional rigidity, 0.391 kgcm² mass moment of inertia, 500 N permissible axial shaft load, and 400 N permissible radial shaft load via 60P actuator and 60G output shaft interfaces. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8141739
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8141739.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Gearbox ange size
- 60 mm
- Motor ange size
- 60 mm
- Torsional backlash
- 0.3 deg
- Gearbox type
- Miter gears
- Gear ratio
- 12:1
- Max. actuator speed
- 13000 rpm
- Gearbox operating temperature
- -25 °C...90 °C
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Degree of protection
- IP54
- Continuous output torque
- 44 Nm
- Mass moment of inertia, gearbox
- 0.391 kgcm²
- Max. output torque
- 70 Nm
- Max. efficiency
- 94 %
- Torsional rigidity
- 2 Nm/arcmin
- Product weight
- 1900 g
- Permissible axial shaft load
- 500 N
- Permissible radial shaft load
- 400 N
- Gearbox interface, output shaft
- 60G
- Gearbox interface, actuator
- 60P
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8141739. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
